06 JIC Cap Stnls

Description & Features

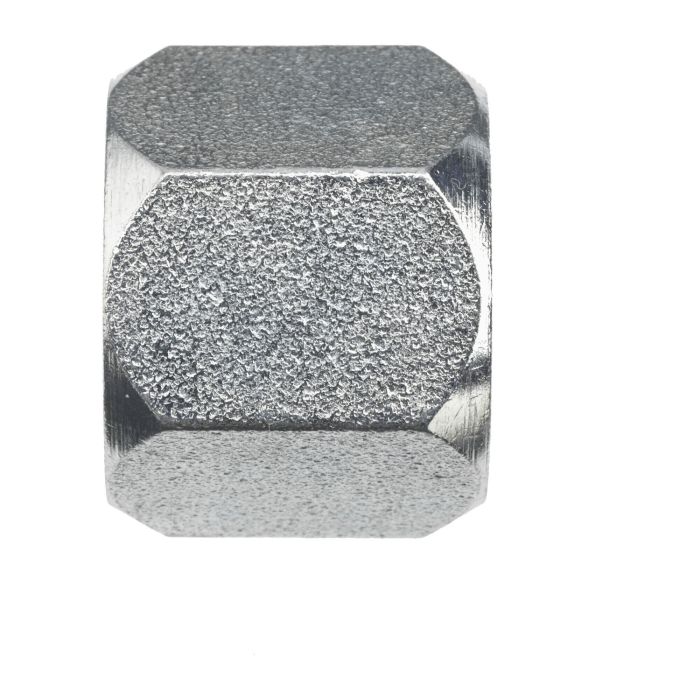

This 06 JIC Cap is expertly constructed from straight stainless steel, ensuring durability and corrosion resistance, ideal for demanding industrial environments. Designed with a female JIC SAE 37-degree flare, it accommodates a tube OD of 3/8 inches, providing a robust and reliable seal for hydraulic systems. The cap's precision threading adheres to SAE J514 standards, ensuring compatibility and ease of installation.

With an impressive maximum dynamic pressure rating of 6,000 PSI, this cap is engineered to withstand high-pressure applications. Its compact dimensions, including an overall length of 0.630 mm and a hex size of 1 mm, make it suitable for tight spaces while maintaining ease of handling. Manufactured by Brennan Industries, this product promises quality and performance in rigorous industrial settings.

SKU: 0304-C-06-SS

Supplier Part Number (MPN): 0304-C-06-SS

Alternate Part Numbers: AJ6Z

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Type Female JIC	Connection Type 1 Female SAE JIC	Cubic Inch Space L x W x H Dimensions 0.297 cu-in	Dimension Standards SAE J514	Dimensions 5/8 in L	Fitting Type Cap Nut	Hex Size 11/16 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Series 0304-C Series	Thread B1 Drill Dimensions 9/16-18	Thread Size 9/16-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
0304-C-04-SS	1/4 in	7/16-20	0.563 in
0304-C-05-SS	5/16 in	1/2-20	5/8 in
0304-C-08-SS	1/2 in	3/4-16	7/8 in
0304-C-10-SS	5/8 in	7/8-14	1 x 1 in
0304-C-12-SS	3/4 in	1-1/16-12	1-1/4
0304-C-24-SS	1-1/2 in	1-7/8-12	2-1/4 in
