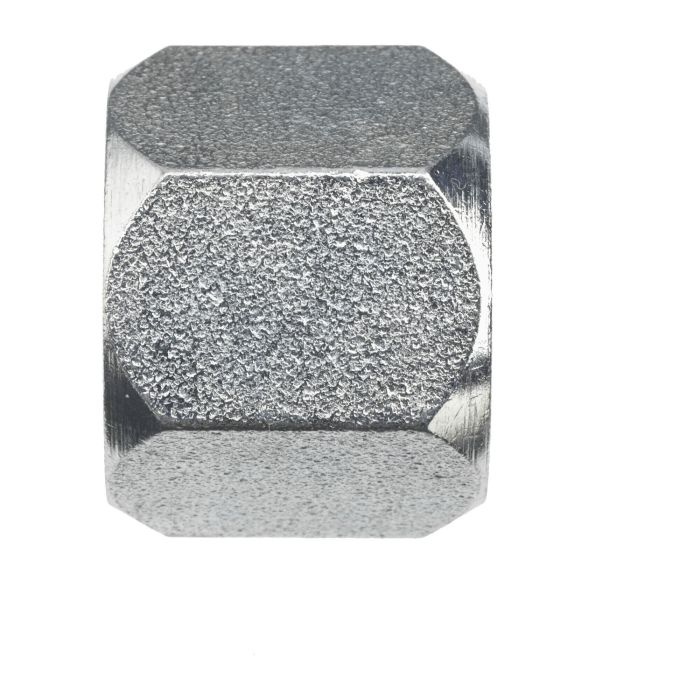

08 JIC Cap Stnls

Description & Features

Designed for high-performance hydraulic systems, this stainless steel cap provides a reliable seal under pressure conditions up to 6,000 psi. With a female JIC SAE 37-degree flare thread type and a 3/4-16 drill size, this cap ensures compatibility with a range of industrial applications. Its straight stainless steel construction offers superior durability and resistance to corrosion, making it suitable for use in harsh environments.

The 08 JIC Cap Stnls is engineered to meet SAE J514 specifications, ensuring consistent performance and a precise fit for tubing with a 1/2-inch outer diameter. Compact with an overall length of 0.750 mm and a hex size of 0.875 mm, this component is an essential part of any hydraulic system requiring robust sealing capabilities.

SKU: 0304-C-08-SS

Supplier Part Number (MPN): 0304-C-08-SS

Alternate Part Numbers: AJ8Z

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Type Female JIC	Connection Type 1 Female SAE JIC	Cubic Inch Space L x W x H Dimensions 0.574 cu-in	Dimension Standards SAE J514	Dimensions 3/4 in L	Fitting Type Cap Nut	Hex Size 7/8 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Series 0304-C Series	Thread B1 Drill Dimensions 3/4-16	Thread Size 3/4-16	Tube OD 1/2 in	Tube Outside Diameter 1/2 in

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
0304-C-04-SS	1/4 in	7/16-20	0.563 in
0304-C-05-SS	5/16 in	1/2-20	5/8 in
0304-C-06-SS	3/8 in	9/16-18	11/16 in
0304-C-10-SS	5/8 in	7/8-14	1 x 1 in
0304-C-12-SS	3/4 in	1-1/16-12	1-1/4
0304-C-24-SS	1-1/2 in	1-7/8-12	2-1/4 in
