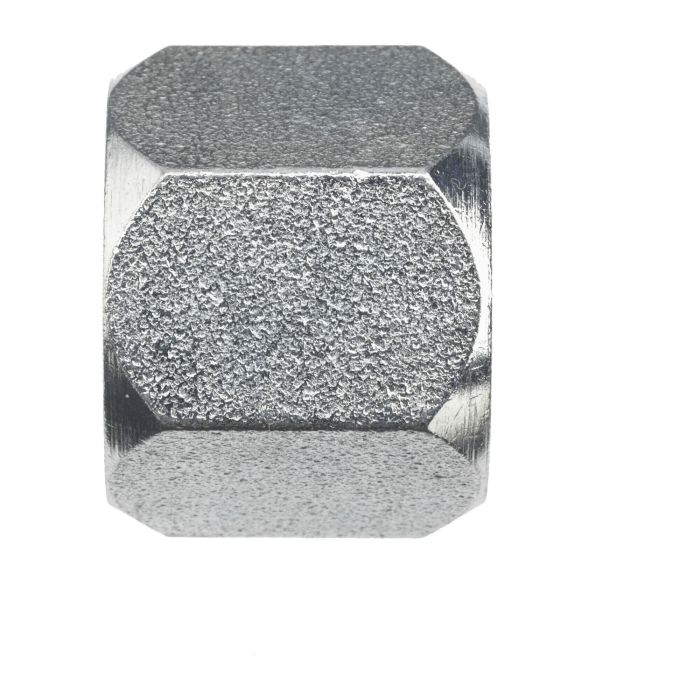

main product photo

8 JIC STEEL CAP NUT

Ask A Question

Description & Features

Crafted by Brennan Industries Inc. this fitting is ideal for demanding industrial applications that require reliability and durability. Made from straight steel it maintains a maximum dynamic pressure of 6 000 psi.

The stainless steel construction features a female JIC SAE 37-degree flare type thread and complies with SAE J514 specifications. This ensures compatibility and secure connections.

With a C Hex dimension of 0.875 mm and an overall length of 0.750 mm the fitting is designed for precise and secure attachment. It is compatible with Tube OD 1/2 inch.

Occupying a cubic inch space of 0.574 it provides optimal performance while being compact.

For safety information California residents should refer to the PROP-65 warning.

Supplier Part Number: 0304-C-08

Specifications

Connection Size 1
1/2 in
Connection Type
Female JIC
Connection Type 1
Female SAE JIC
Cubic Inch Space L x W x H Dimensions
0.574 cu-in
Dimension Standards
SAE J514
Dimensions
3/4 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Cap Nut
Hex Size
7/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Series
0304-C Series
Thread Size
3/4-16
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Judy G on Oct 9, 2025, 7:17 PM
got a 1/2 inch tube with a JIC 37 flare, is this the right cap nut to close it off?
Answer by: Customer Support on Oct 11, 2025, 7:13 PM
For a 1/2 inch tube size JIC 37 degree flare connection, this cap nut matches that setup. It uses a female JIC SAE 37 degree flare thread with a 3/4-16 thread (SAE J514), so it’s meant to cap off that size flare fitting.
Question by: Floyd M on Jun 5, 2025, 1:54 PM
What size tubing does this cap fit, exactly? Gotta make sure I get the right one.
Answer by: Customer Support on Jun 6, 2025, 6:39 PM
It's made to fit tubing with a 1/2 inch outer diameter.
Question by: Vince B on Dec 10, 2025, 8:43 AM
what's the max pressure rating on this cap nut, and is it gonna hold up in a hydraulic system running pretty hard?
Answer by: Customer Support on Dec 12, 2025, 6:22 AM
Rated at 6,000 psi maximum dynamic pressure, it's built to handle demanding hydraulic applications without issue. The straight steel construction and SAE J514-compliant female JIC 37-degree flare thread make it a solid choice for high-pressure line capping where a secure, leak-free connection is what you need.
