10 JIC CAP NUT

Description & Features

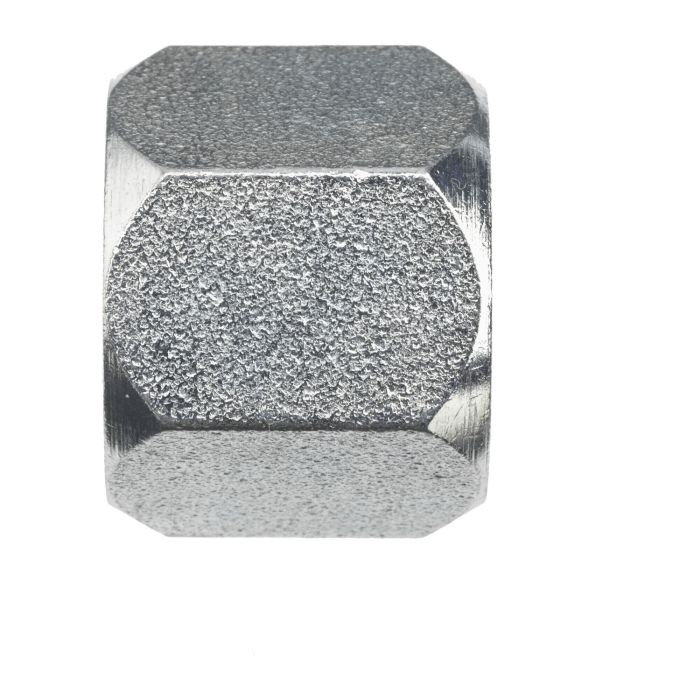

Manufactured by Brennan Industries Inc the 10 JIC Cap Nut provides reliable performance under high pressure situations rated up to 5 000 PSI. Designed with a female JIC SAE 37-degree flare it meets the SAE J514 thread specification.

The straightforward steel construction ensures durability and resilience in demanding environments. This cap nut is perfectly suited for industrial applications requiring a thread size of 7/8-14 and an overall length of 0.840 inches.

The cubic inch space is precisely 0.840 providing a compact solution for various systems. With a C-hex dimension of 1.000 mm the 10 JIC Cap Nut is a versatile choice for professionals in need of dependable and robust components.

Supplier Part Number: 0304-C-10

California Residents: PROP-65 WARNING

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 0304-C-10	Product Weight 0.11 lbs

Product Questions & Answers (2)

Question by: Janet F on May 31, 2025, 6:35 PM

got a 5/8 tube line I need to cap off on a hydraulic system running around 4,500 PSI, this gonna hold up to that?

Answer by: Customer Support on Jun 2, 2025, 6:28 AM

At 4,500 PSI you're well within the rated limit. This cap nut is rated up to 5,000 PSI dynamic pressure, so that application falls comfortably inside its range. It uses a female JIC SAE 37-degree flare connection with a 7/8-14 thread, which is the standard fitting for 5/8 OD tube lines. Straight steel construction handles that kind of working pressure without issue in most hydraulic circuits.

Question by: Hugh S on Jul 28, 2025, 5:03 PM

got a 7/8-14 JIC port i need to cap off, is this the right one for that

Answer by: Customer Support on Jul 30, 2025, 12:52 PM

For a 7/8-14 female JIC SAE 37 degree flare connection, this cap nut matches that thread and flare style. It is also listed for tube OD 5/8, so it lines up with a standard size 10 JIC setup.
