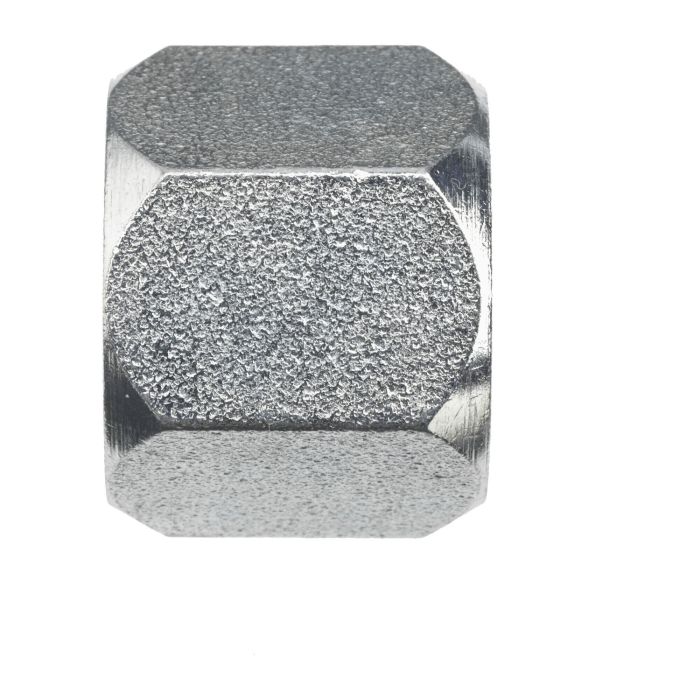

32 JIC CAP NUT

Description & Features

This straight steel 32 JIC CAP NUT features a female JIC SAE 37 degree flare and a B1 thread size of TUDE OD 2. The B1 thread specification conforms to SAE J514 standards.

With a maximum dynamic pressure of 2,000 PSI, this cap nut is manufactured by Brennan Industries and has a C Hex 1 dimension of 2.880 mm and an overall length of 1.440 mm.

SKU: 0304-C-32

Supplier Part Number (MPN): 0304-C-32

Alternate Part Numbers: A210292-32S

Specifications

Brand BRENNAN	Connection Size 1 2 in	Connection Type Female JIC	Connection Type 1 Female SAE JIC	Cubic Inch Space L x W x H Dimensions 11.944 cu-in	Dimension Standards SAE J514	Dimensions 1.438 in L	Finish Trivalent Zinc-Plated	Fitting Type Cap Nut	Hex Size 2-7/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 0304-C Series	Thread Size 2-1/2-12	Tube Outside Diameter 2 in

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
0304-C-02 Steel JIC Cap	1/8 in	5/16-24	3/8 in
0304-C-14 Steel JIC Cap	7/8 in	1-3/16-12	1-3/8 in
0304-C-03	3/16 in	3/8-24	7/16 in
0304-C-04	1/4 in	7/16-20	0.563 in
0304-C-05	5/16 in	1/2-20	5/8 in
0304-C-06	3/8 in	9/16-18	11/16 in
0304-C-08	1/2 in	3/4-16	7/8 in
0304-C-10	5/8 in	7/8-14	1 x 1 in
0304-C-12	3/4 in	1-1/16-12	1-1/4
0304-C-16	1 in	1-5/16-12	1-1/2 in
0304-C-20	1-1/4 in	1-5/8-12	2 in
0304-C-24	1-1/2 in	1-7/8-12	2-1/4 in

Product Questions & Answers (1)

Question by: Ronnie D on Mar 12, 2026, 8:13 PM

what's the max pressure rating on this cap nut, and is it gonna hold up on a hydraulic line running pretty steady load?

Answer by: Customer Support on Mar 14, 2026, 11:35 AM

Rated at 2,000 PSI dynamic pressure, it's built for hydraulic service on steel-line assemblies using the SAE 37 degree flare connection standard. For steady-load applications that stay within that pressure ceiling, it should perform reliably. Just make sure your line and fitting setup matches the 2-1/2-12 thread spec and the 2-inch tube OD requirement before you put it to work.
