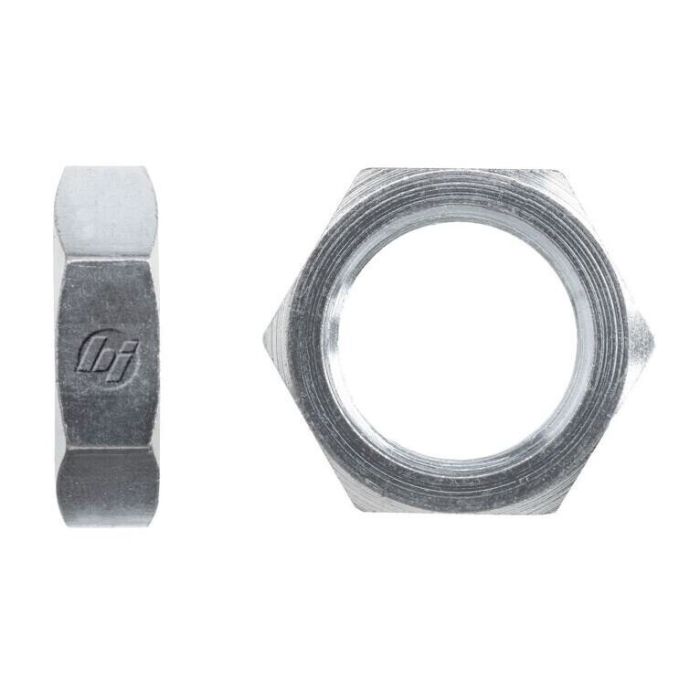

02 BULKHEAD LOCK NUT

Description & Features

Engineered for secure and reliable connections, the 02 Bulkhead Lock Nut is essential for hydraulic systems requiring a tight seal and robust performance. Constructed from straight steel, this lock nut features a male JIC SAE 37-degree flare thread type, adhering to the SAE J514 specification for high compatibility and performance. Its overall length is a compact 0.220 mm, while the C Hex size measures 0.562 mm, making it suitable for confined installation spaces.

Designed by Brennan Industries, this bulkhead lock nut supports a 5/16-24 thread drill size, catering to a tube OD of 1/8 inch. These dimensions ensure a precise fit and optimal functionality in various industrial environments. Please note that California residents should be aware of the PROP-65 warning associated with this product.

SKU: 0306-02

Supplier Part Number (MPN): 0306-02

Alternate Part Numbers: A210212-2S

Specifications

Connection Size 1 1/8 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC	Dimension Standards SAE J514	Dimensions 0.22 in W	Finish Trivalent Zinc-Plated	Fitting Type Locknut	Hex Size 0.563 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 0306 Series	Thread Size 5/16-24

Product Questions & Answers (1)

Question by: Johnny J on Apr 18, 2025, 4:52 PM

What size drill bit do I need for this bulkhead lock nut?

Answer by: Customer Support on Apr 20, 2025, 7:54 AM

You'll want to use a 5/16-24 thread drill size with this lock nut.
