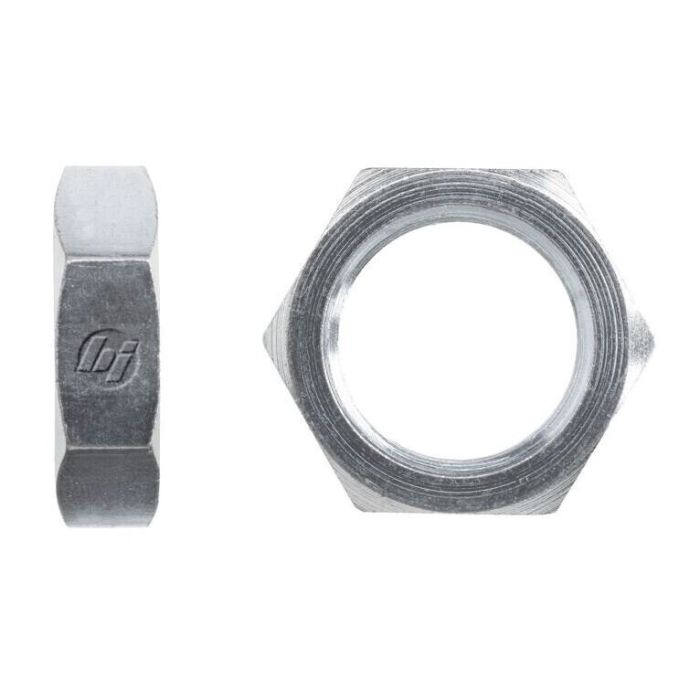

24 BULKHEAD LOCK NUT

Description & Features

Designed for use with 1-1/2 inch OD tubing, this steel bulkhead lock nut conforms to SAE J514 and is compatible with Male JIC SAE 37-degree flare connections. The 24 Bulkhead Lock Nut is manufactured by Brennan Industries from straight steel and is part of the Brennan 0306 series, sized for 1 7/8-12 thread applications.

With a hex measurement of 2.125 inches and an overall length of 0.410 inches, this lock nut is suited for securing bulkhead fittings in hydraulic assemblies where a reliable, leak-resistant connection through a panel or bulkhead is required. California residents should note this product carries a Proposition 65 warning.

SKU: 0306-24

Supplier Part Number (MPN): 0306-24

Alternate Part Numbers: A210212-24S, C1ZU47

Specifications

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC	Dimension Standards SAE J514	Dimensions 0.41 in W	Finish Trivalent Zinc-Plated	Fitting Type Locknut	Hex Size 2-1/8 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 0306 Series	Thread Size 1-7/8-12	Tube Outside Diameter 1-1/2 in

Similar Products

Model Number	Connection Size 1	Thread Size	Hex Size
0306-32 Steel Bulkhead Locknut	2 in	2-1/2-12	2-3/4 in
0306-02	1/8 in	5/16-24	0.563 in
0306-03	3/16 in	3/8-24	5/8 in
0306-04	1/4 in	7/16-20	11/16 in
0306-05	5/16 in	1/2-20	3/4 in
0306-06	3/8 in	9/16-18	0.81 in
0306-08	1/2 in	3/4-16	1 x 1 in
0306-10	5/8 in	7/8-14	1-1/8 in
0306-12	3/4 in	1-1/16-12	1-3/8 in
0306-14	7/8 in	1-3/16-12	1-1/2 in
0306-16	1 in	1-5/16-12	1-5/8
0306-20	1-1/4 in	1-5/8-12	1-7/8 in
