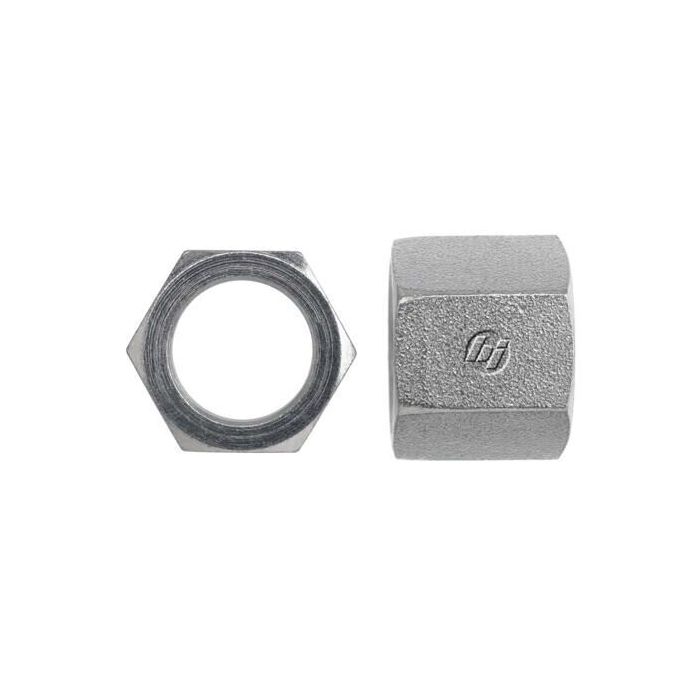

10 JIC TUBE NUT

Description & Features

The 10 Jic Tube Nut from Brennan Industries Inc. ensures a secure and reliable connection in hydraulic systems. Designed for optimal performance this straight steel nut features a 7/8-14 thread size adhering to SAE J514 specification. The overall length of 0.980 mm and a C hex dimension of 1.000 mm provide precise fitting.

The products robust construction guarantees durability under various industrial conditions. It is part of the 0318 series matching seamlessly with related components. Ideally suited for high-pressure environments the nut effectively prevents leaks and maintains system integrity.

This components hexagonal design allows for easy tightening contributing to efficient installation and maintenance processes. The JIC tube nut type facilitates compatibility with a range of standard fittings ensuring versatile use in numerous applications.

MPN: 0318

Supplier Part Number: 0318-10

Specifications

Connection Size 1 5/8 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC Flare Tube	Cubic Inch Space L x W x H Dimensions 0.98 cu-in	Dimension Standards SAE J514	Dimensions 0.98 in L	Finish Trivalent Zinc-Plated	Fitting Type Nut	Hex Size 1 x 1 in	Material Steel	Material Construction 12L14/C1045 Steel	Series 0318 Series	Thread B1 Drill Dimensions 0.696 in	Thread Size 7/8-14

Product Questions & Answers (1)

Question by: Wade W on Sep 23, 2025, 9:14 PM

Thread size on this one is 7/8-14, that right? Just want to make sure before I order a handful of em for the shop.

Answer by: Customer Support on Sep 25, 2025, 5:06 PM

7/8-14 is correct. It follows the SAE J514 spec, so it'll play nice with standard JIC fittings in that size range. The series number is 0318, and the supplier part number is 0318-10 if you need that for your purchase order.
