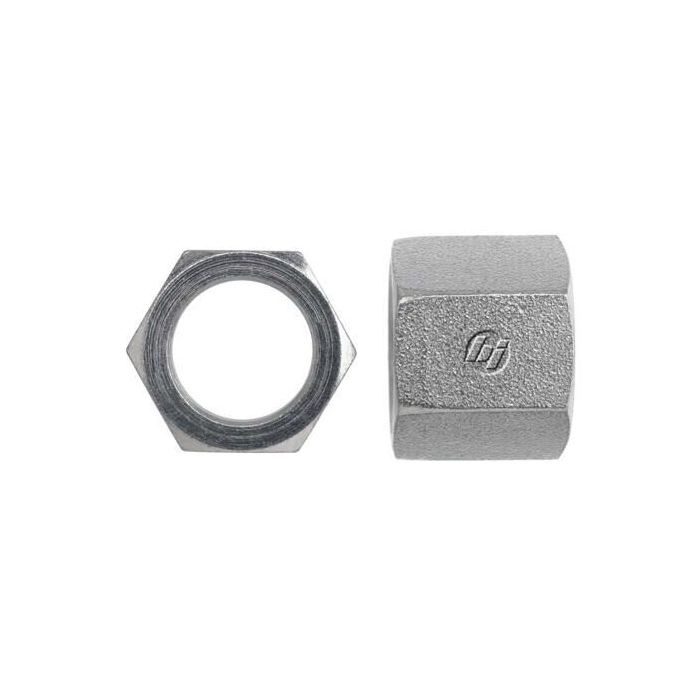

24 JIC Tube Nut Stainless

Description & Features

This straight stainless steel 24 JIC Tube Nut is manufactured to SAE J514 standards. It features a 1-7/8-12 thread size.

The 24 JIC Tube Nut Stainless is part of the 0318 series from Brennan Industries.

SKU: 0318-24-SS

Supplier Part Number (MPN): 0318-24-SS

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC Flare Tube	Cubic Inch Space L x W x H Dimensions 7.189 cu-in	Dimension Standards SAE J514	Dimensions 1.42 in L	Fitting Type Nut	Hex Size 2-1/4 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Series 0318 Series	Thread B1 Drill Dimensions 1.614 in	Thread Size 1-7/8-12

Model Number	Connection Size 1	Thread Size	Hex Size
0318-02-SS	1/8 in	5/16-24	3/8 in
0318-03-SS	3/16 in	3/8-24	7/16 in
0318-04-SS	1/4 in	7/16-20	0.563 in
0318-05-SS	5/16 in	1/2-20	5/8 in
0318-06-SS	3/8 in	9/16-18	11/16 in
0318-08-SS	1/2 in	3/4-16	7/8 in
0318-10-SS	5/8 in	7/8-14	1 x 1 in
0318-12-SS	3/4 in	1-1/16-12	1-1/4
0318-14-SS	7/8 in	1-3/16-12	1-3/8 in
0318-16-SS	1 in	1-5/16-12	1-1/2 in
0318-20-SS	1-1/4 in	1-5/8-12	2 in
0318-32-SS	2 in	2-1/2-12	2-7/8 in
