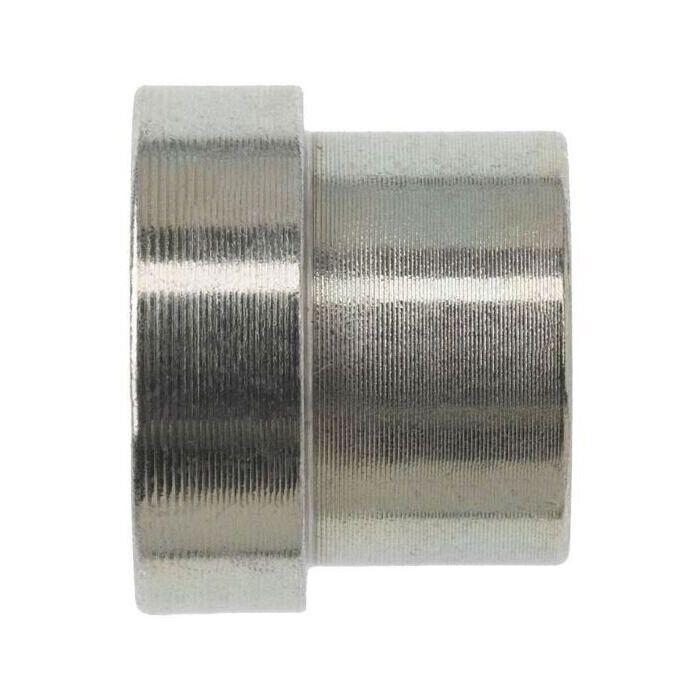

04 JIC TUBE SLEEVE

Description & Features

Brennan Industries Inc. presents a reliable solution for your industrial needs with the 04 JIC Tube Sleeve. Designed in accordance with SAE J514 standards this tube sleeve ensures optimal compatibility and performance in specific applications.

Crafted from durable straight steel the sleeve guarantees longevity and resistance against wear. Measuring 0.410 mm in overall length it is perfectly suited for a Tube OD of 1/4 inch offering precise and reliable connections.

The series 0319 product is essential for maintaining robust and efficient operations in various industry-specific systems. It features a thread B1 drill size of 0.255 mm enhancing its adaptability and utility.

Supplier Part Number: 0319-04

California Residents: PROP-65 WARNING

Specifications

Connection Size 1 1/4 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 0.41 in L	Finish Trivalent Zinc-Plated	Fitting Type Sleeve	Material Steel	Material Construction 12L14/C1045 Steel	Series 0319 Series	Thread B1 Drill Dimensions 0.255 in	Tube OD 1/4 in	Tube Outside Diameter 1/4 in

Product Questions & Answers (1)

Question by: Billy F on Jan 13, 2026, 8:13 PM

Hey, I'm just trying to make sure this'll fit my setup. It says it's for a 1/4 inch tube OD, but is that the actual outer diameter it's made for?

Answer by: Customer Support on Jan 15, 2026, 6:50 PM

Designed for SAE J514 compliance, this JIC tube sleeve fits a 1/4 inch tube outer diameter precisely. It is a crucial component to ensure reliable connections in your hydraulic system.
