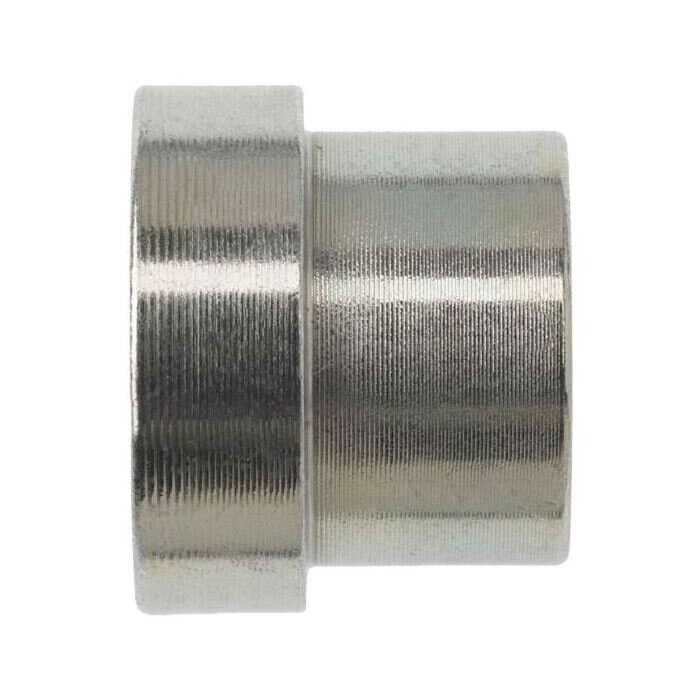

05 JIC TUBE SLEEVE

Description & Features

This straight steel 05 JIC Tube Sleeve features a thread size of Tube OD 5/16, manufactured by Brennan Industries to meet SAE J514 specifications.

It has a thread drill size of 0.318 mm and an overall length of 0.440 mm, designed for the 0319 series.

SKU: 0319-05

Supplier Part Number (MPN): 0319-05

Alternate Part Numbers: A900605-5S

Specifications

Brand BRENNAN	Connection Size 1 5/16 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 0.44 in L	Finish Trivalent Zinc-Plated	Fitting Type Sleeve	Material Steel	Material Construction 12L14/C1045 Steel	Series 0319 Series	Thread B1 Drill Dimensions 0.318 in	Tube Outside Diameter 0.31 in

Similar Products

Model Number	Connection Size 1	Price	Action
0319-02	1/8 in
0319-03	3/16 in
0319-04	1/4 in
0319-06	3/8 in
0319-08	1/2 in
0319-10	5/8 in
0319-12	3/4 in
0319-14	7/8 in
0319-16	1 in
0319-20	1-1/4 in
0319-24	1-1/2 in
0319-32	2 in

Product Questions & Answers (1)

Question by: Terry S on May 12, 2025, 9:10 AM

Just wanna make sure this'll fit my setup – says it's for the 0319 series?

Answer by: Customer Support on May 14, 2025, 8:35 AM

Correct, this 05 JIC Tube Sleeve is designed specifically for the 0319 series, ensuring proper fit and function. It's a straight steel sleeve with a Tube OD of 5/16.
