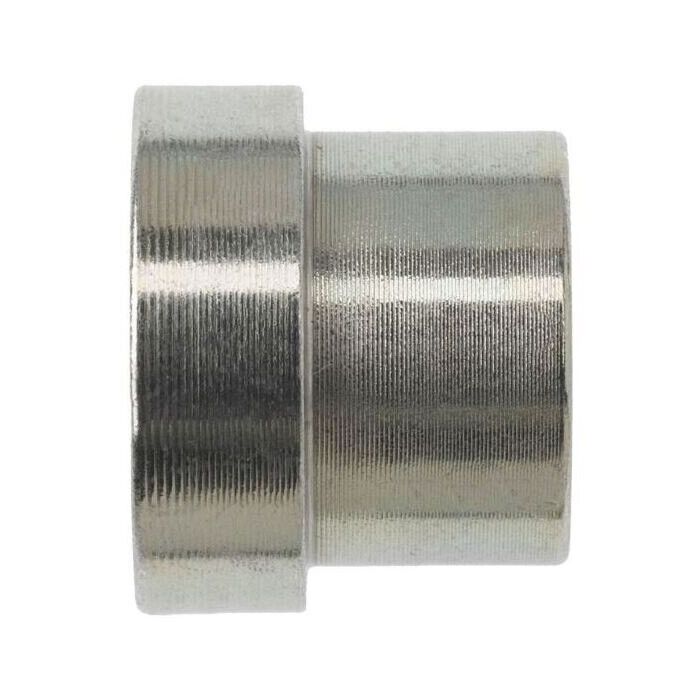

06 JIC TUBE SLEEVE

Ask A Question

Description & Features

The 06 JIC Tube Sleeve is a reliable component built from straight steel ensuring durability and strength in various industrial applications. This product part of the Series 0319 meets the SAE J514 specification indicating its compliance with high standards. Its overall length is 0.500 mm making it compact yet effective in its role. The tube sleeve is designed for use with a thread size of 3/8" OD which is essential for maintaining proper connections within your machinery or equipment.

MPN: 0319

Supplier Part Number: 0319-06

Specifications

Connection Size 1
3/8 in
Connection Type
JIC
Connection Type 1
SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
1/2 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Sleeve
Material
Steel
Material Construction
12L14/C1045 Steel
Series
0319 Series
Thread B1 Drill Dimensions
0.38 in
Tube OD
3/8 in
Tube Outside Diameter
0.38 in

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Dustin T on May 10, 2025, 9:55 AM
what spec does this tube sleeve meet, and is it a standard size most folks would run into regular hydraulic work?
Answer by: Customer Support on May 11, 2025, 1:57 PM
Meets SAE J514, which is one of the more common standards you'll find across general hydraulic fittings and tube connections. The tube OD size is 3/8 inch, so it fits right in with a lot of everyday hydraulic line work without needing anything unusual to go along with it.
Question by: Wayne C on Feb 20, 2026, 6:44 PM
got a 3/8 OD JIC setup, is this the right sleeve for it
Answer by: Customer Support on Feb 22, 2026, 6:50 AM
For a 3/8 inch tube OD JIC connection, this sleeve matches that size and it is a JIC tube sleeve built to the SAE J514 specification.
Question by: Jean W on Jan 19, 2026, 7:08 AM
What size tubing does this sleeve fit? Just want to make sure I get the right one.
Answer by: Customer Support on Jan 21, 2026, 6:31 AM
This JIC tube sleeve is made for use with 3/8" OD tubing.
