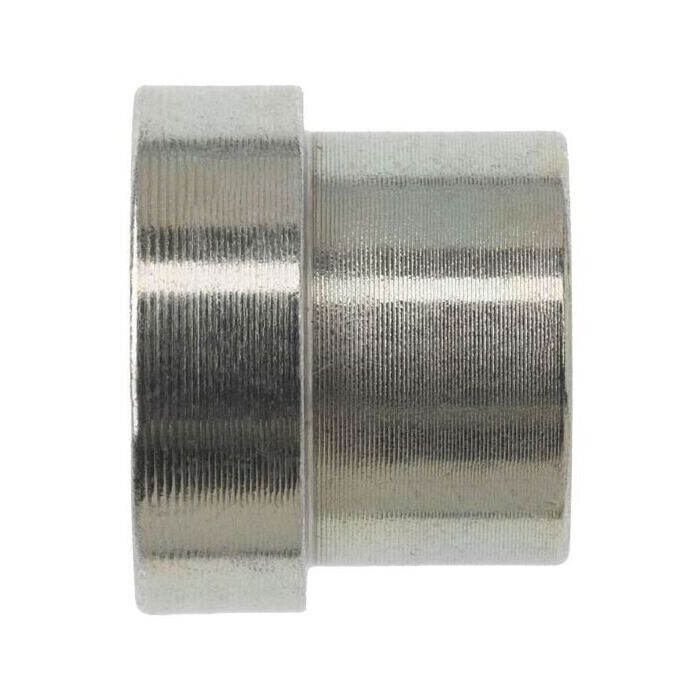

main product photo

08 JIC TUBE SLEEVE

Ask A Question

Description & Features

The JIC Tube Sleeve is specifically designed to meet the stringent requirements of various industrial applications. Engineered from straight steel this robust component ensures durability and reliable performance.

Conforming to SAE J514 specifications it features a tube outer diameter of 1/2 inch making it compatible with a wide range of tubing systems. The thread B1 drill measures 0.505 mm meticulously designed for precise fitting and secure connections.

With an overall length of 0.560 mm the JIC Tube Sleeve is a compact yet essential part for efficient fluid transfer. The part belongs to the 0319 series renowned for its high-quality and consistency across different applications.

Manufactured by Brennan Industries Inc this product exemplifies quality engineering and adherence to industry standards. Please note the Proposition 65 warning for California residents regarding potential exposure to chemicals.

Supplier Part Number: 0319-08

Specifications

Connection Size 1
1/2 in
Connection Type
JIC
Connection Type 1
SAE 37 deg JIC Flare
Dimension Standards
SAE J514
Dimensions
0.56 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Sleeve
Material
Steel
Material Construction
12L14/C1045 Steel
Series
0319 Series
Thread B1 Drill Dimensions
0.505 in
Tube OD
1/2 in
Tube Outside Diameter
1/2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Brent C on Oct 13, 2025, 2:15 PM
does this sleeve work with half inch OD tubing or is it sized different than what the name suggests
Answer by: Customer Support on Oct 15, 2025, 1:13 PM
Half-inch OD tubing is exactly what it's built for. The Thread B1 size is listed as Tube OD 1/2, so if you're running 1/2 inch OD tube and need a JIC sleeve to go with it, this is the right part. It conforms to SAE J514, which is the standard spec for JIC fittings, so it'll play well with other compliant components in that size range.
