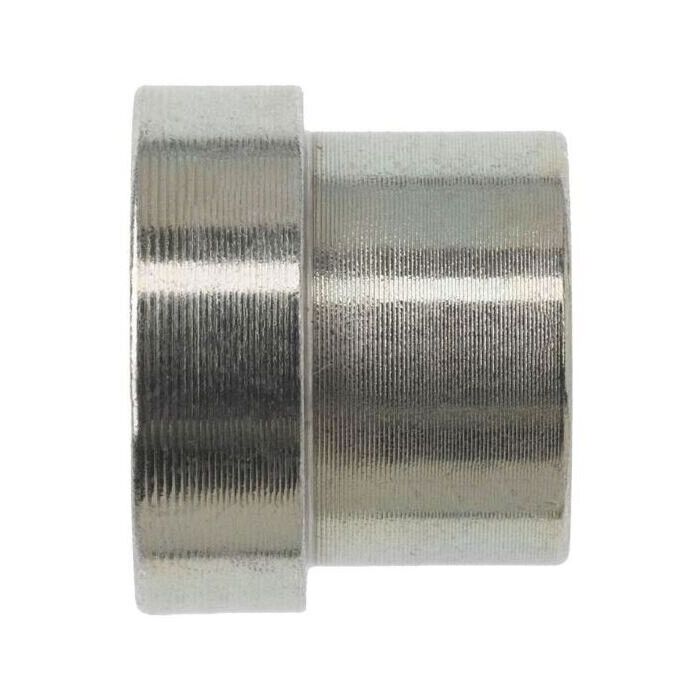

12 JIC TUBE SLEEVE

Description & Features

Brennan Industries Inc's 12 JIC Tube Sleeve is a high-quality fitting designed for industry-specific applications where reliable connectivity and performance are required.

Made from straight steel this sleeve features a length of 0.680 mm and complies with SAE J514 specifications ensuring compatibility and durability in demanding environments. The tube OD is 3/4 offering precise threading for secure connections.

Engineered to meet JIC standards this product ensures excellent leak resistance and contributes to operational efficiency. The rugged construction provides long-lasting use in various industrial settings.

Supplier Part Number: 0319-12

MPN: 0319-12

Specifications

Brand BRENNAN	Connection Size 1 3/4 in	Connection Type JIC	Connection Type 1 SAE 37 deg JIC Flare	Dimension Standards SAE J514	Dimensions 0.68 in L	Finish Trivalent Zinc-Plated	Fitting Type Sleeve	Material Steel	Material Construction 12L14/C1045 Steel	Series 0319 Series	Thread B1 Drill Dimensions 0.756 in	Tube Outside Diameter 3/4 in

Similar Products

Model Number	Connection Size 1	Price	Action
0319-02	1/8 in
0319-03	3/16 in
0319-04	1/4 in
0319-05	5/16 in
0319-06	3/8 in
0319-08	1/2 in
0319-10	5/8 in
0319-14	7/8 in
0319-16	1 in
0319-20	1-1/4 in
0319-24	1-1/2 in
0319-32	2 in

Product Questions & Answers (1)

Question by: Ross B on May 5, 2025, 7:19 AM

Does this sleeve work with 3/4 inch OD tubing, or is that measurement referring to something else on the fitting?

Answer by: Customer Support on May 7, 2025, 6:58 AM

The 3/4 inch figure is the tube OD, so yes, this sleeve is built to mate with 3/4 inch outside diameter tubing. It follows SAE J514 specs, which is the standard JIC fitting spec, so as long as your tubing matches that OD and you're running a JIC system, you're in the right place.
