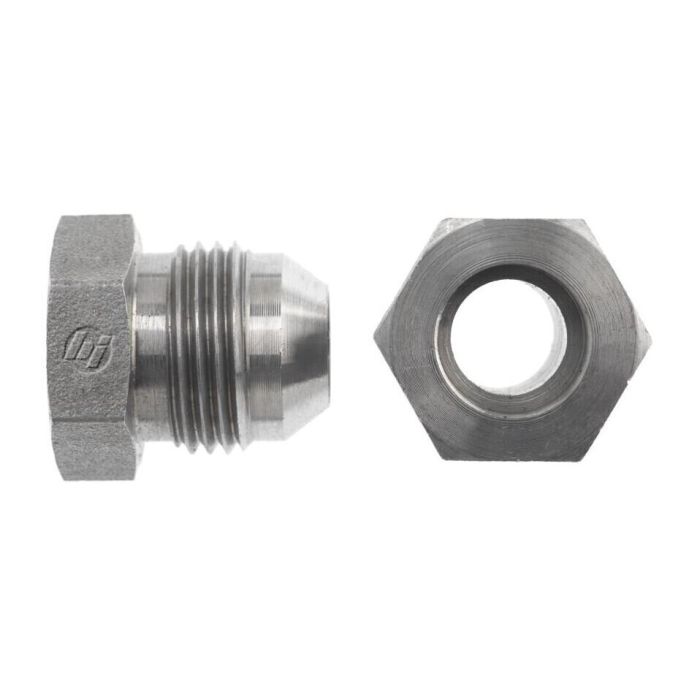

main product photo

04BORE-04MJ STRAIGHT

Ask A Question

Description & Features

Designed for industry-specific applications this superior connector ensures a precise fit with a BORE type thread size of 1/4" and MALE JIC SAE 37-degree flare thread size of 7/16-20 mm compliant with SAE J514 specification.

The 04BORE-04MJ STRAIGHT crafted by Brennan Industries Inc is a high-quality straight steel adapter part of the 0403 series. The robust material ensures durability and reliable performance in demanding environments.

With an overall length of 0.800 mm and a secondary length of 0.250 mm this adapter offers optimal compatibility and integration into various systems. Thread B1 has a drill size of 0.254 mm while Thread B2 maintains a drill size of 0.172 mm ensuring proper alignment and secure connections.

Supplier Part Number: 0403-04-04

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
0.796 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1/2 in
l2 Dimensions
1/4 in
Material
Steel
Material Construction
1018/1020 Steel
Series
0403 Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.254 in
Thread Size
7/16-20
Tube OD
1/4 in
Tube Outside Diameter
1/4 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dustin S on Aug 17, 2025, 8:39 AM
Part number 0403-04-04, that the same thing as A73014-4S? Got a requisition that lists the alternate and wanna make sure im ordering the right fitting.
Answer by: Customer Support on Aug 18, 2025, 1:24 PM
Both numbers refer to the same part. A73014-4S is just an alternate part number for the 0403-04-04, so either one gets you this exact Brennan straight adapter. You're good to order off either reference.
Question by: Peggy L on Sep 19, 2025, 11:45 AM
Will this fitting work with a standard JIC setup?
Answer by: Customer Support on Sep 21, 2025, 6:09 AM
Yes, this straight adapter features a Male JIC SAE 37-degree flare thread, so it's designed to be compatible with standard JIC (SAE J514) connections.
