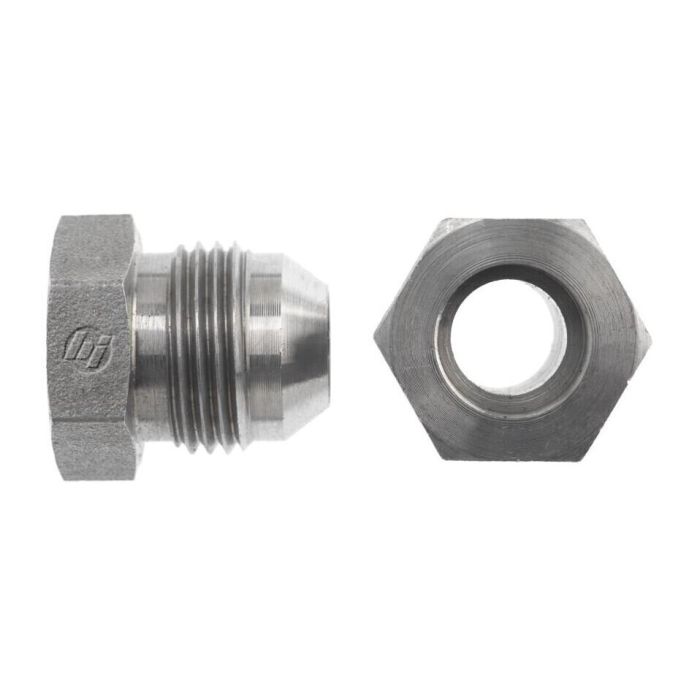

05BORE-05MJ STRAIGHT

Manufactured from straight steel, the 05Bore-05MJ Straight is a hydraulic tube fitting designed to transition between a 5/16" tube OD bore end and a 1/2-20 Male JIC SAE 37-degree flare connection. The bore end accommodates a drill diameter of 0.319" while the male JIC end is sized at 0.234", with the fitting conforming to SAE J514 standards on the flare side.

Compact in form, this straight fitting measures 0.800" in overall length with a secondary length dimension of 0.250". Its Brennan Series 0403 designation identifies it within a consistent product family for straightforward cross-referencing and sourcing. Suited for hydraulic line assemblies where a direct, in-line bore-to-JIC connection is required, it carries a California Proposition 65 warning for residents of that state.

SKU: 0403-05-05

Supplier Part Number (MPN): 0403-05-05

Alternate Part Numbers: A73014-5S
