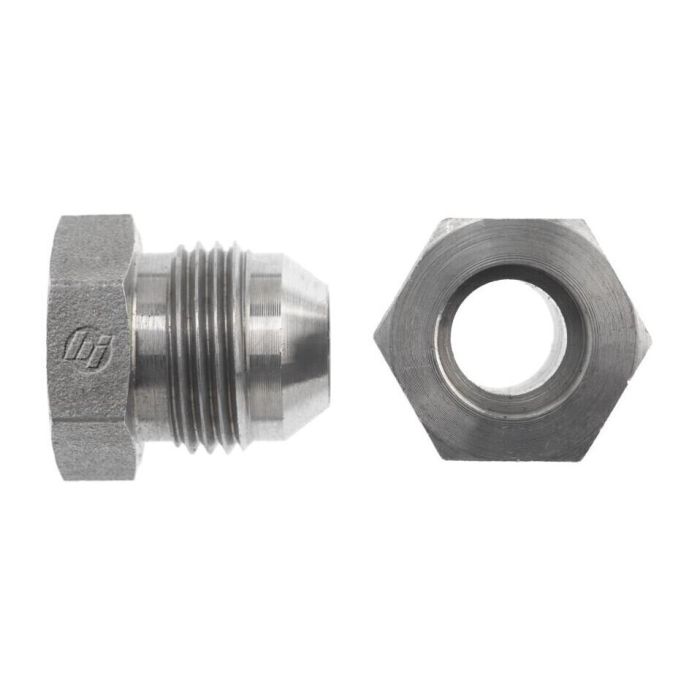

06BORE - 06MJ STRAIGHT SS

Description & Features

This robust stainless steel fitting is designed for industrial applications requiring reliable and precise connections. It features a Male JIC SAE 37 Degree Flare fitting with a 9/16-18 thread size, ensuring compatibility with SAE J514 standards. The fitting is constructed from straight stainless steel, providing excellent corrosion resistance and durability in demanding environments.

The 06BORE - 06MJ STRAIGHT SS fitting is part of the Brennan 0403 series, known for its high-quality design and performance. Its tube OD measures 3/8 inches, making it suitable for various hydraulic systems where exacting standards are paramount. With an overall length of 0.840 mm, this fitting is engineered for seamless integration into your industrial setup.

SKU: 0403-06-06-SS

Supplier Part Number (MPN): 0403-06-06-SS

Specifications

Brand BRENNAN	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Fitting Type Adapter	Hex Size 5/8 in	Hose Dash Size 06	l2 Dimensions 0.284 in	l Dimensions 0.84 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 6000 psi	Series 0403 Series	Thread 2 Drill Dimensions 0.297 in	Thread B1 Drill Dimensions 0.381 in	Thread B2 Drill Dimensions 0.297 in	Thread Size 9/16-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Price	Action
0403-04-04-SS	1/4 in	1/4 in
0403-16-16-SS	1 in	1 in

Product Questions & Answers (1)

Question by: Gene R on Mar 4, 2026, 8:34 PM

Is this fitting okay to use with hydraulic fluid, or is it better suited for something else?

Answer by: Customer Support on Mar 6, 2026, 1:17 PM

Designed specifically for industrial applications needing reliable connections, this stainless steel fitting will work great in hydraulic systems.
