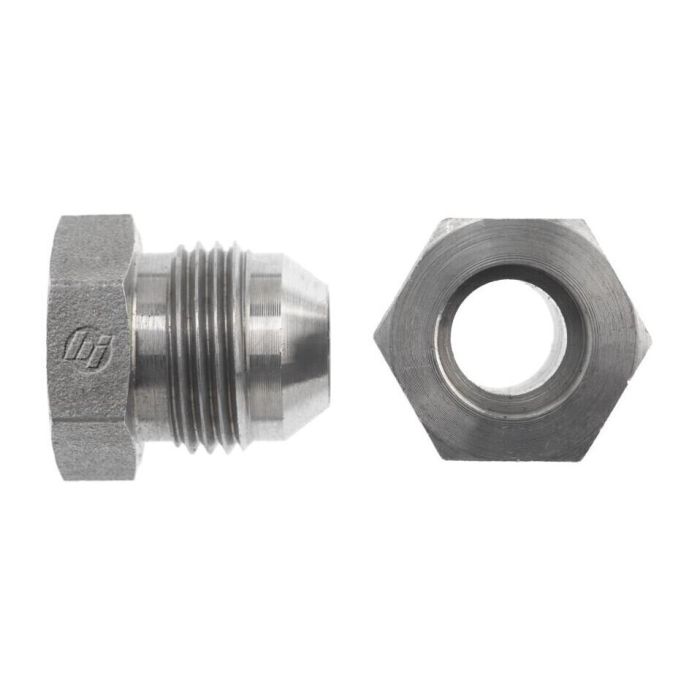

main product photo

06BORE-08MJ STRAIGHT

Ask A Question

Description & Features

Crafted from high-quality straight steel, the 06BORE-08MJ STRAIGHT fitting is designed for precision and durability in industrial hydraulic systems. This fitting features a BORE thread type with a tube outer diameter of 3/8-1/2 inches, ensuring a secure and reliable connection. The male JIC SAE 37-degree flare thread type, sized at 3/4-16, complies with SAE J514 standards, providing compatibility with a wide range of hydraulic applications.

With an overall length of 0.940 mm, this fitting is compact yet robust, making it ideal for use in confined spaces where efficiency is crucial. Manufactured by Brennan Industries, a trusted name in hydraulic components, this fitting guarantees consistent performance under demanding conditions. Its precise thread specifications ensure optimal sealing and pressure management, essential for maintaining system integrity.

SKU: 0403-06-08

Supplier Part Number (MPN): 0403-06-08

Alternate Part Numbers: A73014-6-8S

Specifications

Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
0.937 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
l2 Dimensions
0.283 in
Material
Steel
Material Construction
1018/1020 Steel
Maximum Operating Pressure
6000 psi
Series
0403 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.379 in
Thread Size
3/4-16

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Brett A on Nov 25, 2025, 3:20 PM
trying to match up a fitting i pulled off a machine, is this one a 3/4-16 male JIC on one end?
Answer by: Customer Support on Nov 27, 2025, 6:57 AM
On the JIC side, you are getting a male JIC SAE 37 degree flare with a 3/4-16 thread, built to the SAE J514 spec.
Question by: Lance R on Feb 25, 2026, 8:45 PM
Does the male JIC end on this fitting follow SAE J514, or is that something I'd need to verify separate?
Answer by: Customer Support on Feb 26, 2026, 9:08 PM
SAE J514 compliance is built into the male JIC end on this one. The 3/4-16 thread with the 37-degree flare is spec'd to that standard, so you're covered there without any extra verification on your end.
