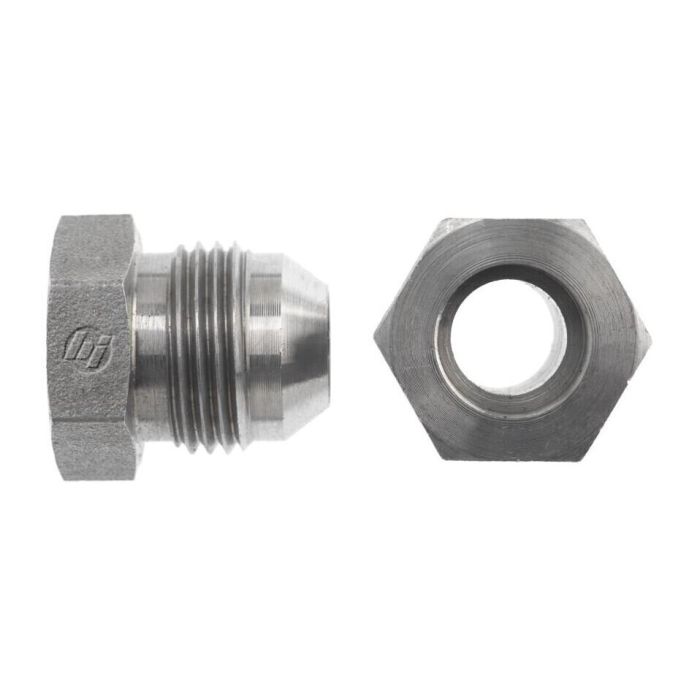

08BORE-06MJ STRAIGHT

Ask A Question

Description & Features

Engineered for robustness and precision, the 08BORE-06MJ STRAIGHT delivers reliable performance in hydraulic systems. Crafted from high-quality straight steel, this component ensures durability and corrosion resistance in demanding environments. The fitting features a BORE connection type with a tube outer diameter of 1/2-3/8 inches, paired with a Male JIC SAE 37 Degree Flare thread, conforming to the SAE J514 standard, ensuring compatibility with a wide range of hydraulic applications.

With an overall length of 0.940 mm and a thread size of 9/16-18, the 08BORE-06MJ STRAIGHT is designed for optimal integration into your hydraulic systems, offering a secure and leak-free connection. This makes it an ideal choice for industrial applications requiring reliable and efficient fluid transfer. Manufactured by Brennan Industries, this fitting adheres to high standards of quality and performance.

SKU: 0403-08-06

Supplier Part Number (MPN): 0403-08-06

Alternate Part Numbers: A73014-8-6S

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
0.837 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.81 in
l2 Dimensions
0.384 in
l Dimensions
0.94 in
Material
Steel
Material Construction
1018/1020 Steel
Maximum Operating Pressure
6000 psi
Series
0403 Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.504 in
Thread Size
9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Peggy K on Feb 20, 2026, 2:44 PM
Will this fitting hold up if I'm constantly running hydraulic fluid through it? I don't want it to corrode after a short time.
Answer by: Customer Support on Feb 21, 2026, 5:38 PM
For continuous hydraulic fluid transfer, this fitting is crafted from high-quality straight steel, which offers both durability and corrosion resistance. This should give you a reliable, leak-free connection in demanding industrial uses.
