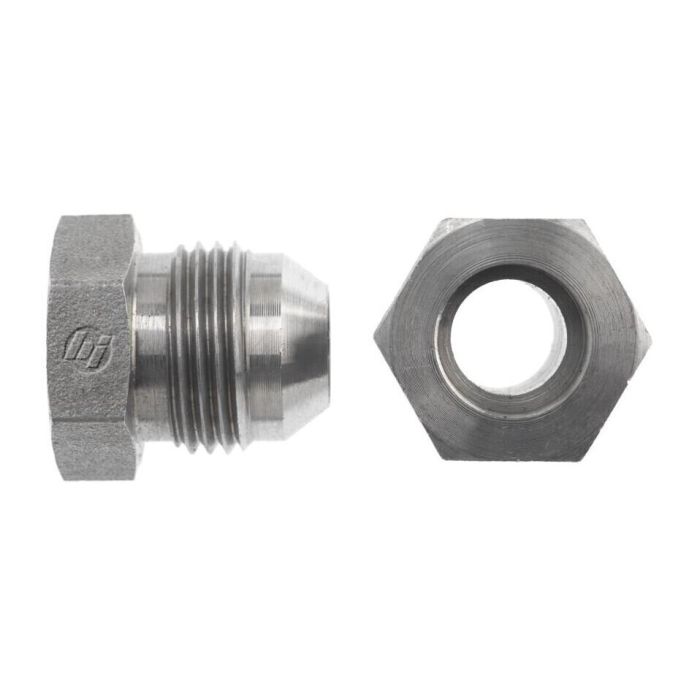

08BORE-08MJ STRAIGHT

Description & Features

The 08Bore-08MJ Straight adapter by Brennan Industries Inc is engineered for robust industrial applications. Crafted from straight steel this adapter ensures durability and longevity. Designed to meet Series 0403 standards it features precise threading specifications including a Thread B1 drill of 0.504mm and a Thread B2 drill of 0.391mm.

Its overall length L measures 0.940mm and L2 is 0.283mm making it a compact solution for tight spaces.

The adapter incorporates a BORE Thread Type B1 and a Male JIC SAE 37 Degree Flare Thread Type B2 suitable for a variety of industrial environments. Thread B1 size is Tube OD 1/2-1/2 and Thread B2 size is 3/4-16 conforming to SAE J514 specifications.

Supplier Part Number: 0403-08-08

Specifications

Brand BRENNAN	Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 0.937 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.81 in	l2 Dimensions 0.283 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 6000 psi	Series 0403 Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.504 in	Thread Size 3/4-16	Tube OD 1/2 in	Tube Outside Diameter 1/2 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
0403-04-04	1/4 in	1/4 in	7/16-20
0403-05-05	5/16 in	5/16 in	1/2-20
0403-06-06	3/8 in	3/8 in	9/16-18
0403-06-08	3/8 in	1/2 in	3/4-16
0403-08-06	1/2 in	3/8 in	9/16-18
0403-08-10	1/2 in	5/8 in	7/8-14
0403-10-08	5/8 in	1/2 in	3/4-16
0403-10-10	5/8 in	5/8 in	7/8-14
0403-10-12	5/8 in	3/4 in	1-1/16-12
0403-12-08	3/4 in	1/2 in	3/4-16
0403-12-10	3/4 in	5/8 in	7/8-14
0403-12-12	3/4 in	3/4 in	1-1/16-12
0403-14-14	7/8 in	7/8 in	1-3/16-12
0403-16-12	1 in	3/4 in	1-1/16-12
0403-16-16	1 in	1 in	1-5/16-12
0403-20-20	1-1/4 in	1-1/4 in	1-5/8-12
0403-24-24	1-1/2 in	1-1/2 in	1-7/8-12
0403-32-32	2 in	2 in	2-1/2-12

Product Questions & Answers (2)

Question by: Melvin C on Mar 11, 2026, 8:24 PM

What kind of thread connection does the male end on this adapter use?

Answer by: Customer Support on Mar 13, 2026, 6:42 PM

The male end runs a 3/4-16 Male JIC SAE 37 Degree Flare thread, built to SAE J514 spec. That's a pretty common standard in hydraulic line work, so it should pair up clean with fittings and hoses already running JIC flare connections on your system.

Question by: Travis G on Oct 11, 2025, 5:40 PM

i've got a hose end that’s 3/4-16 JIC, is this the right straight adapter to tie into a 1/2 tube bore?

Answer by: Customer Support on Oct 13, 2025, 9:19 AM

For matching threads, it lines up with what you described. One side is a Male JIC SAE 37 degree flare in 3/4-16 (SAE J514), and the other side is a BORE connection sized for tube OD 1/2-1/2. It is a straight steel adapter in Brennan’s 0403 series.
