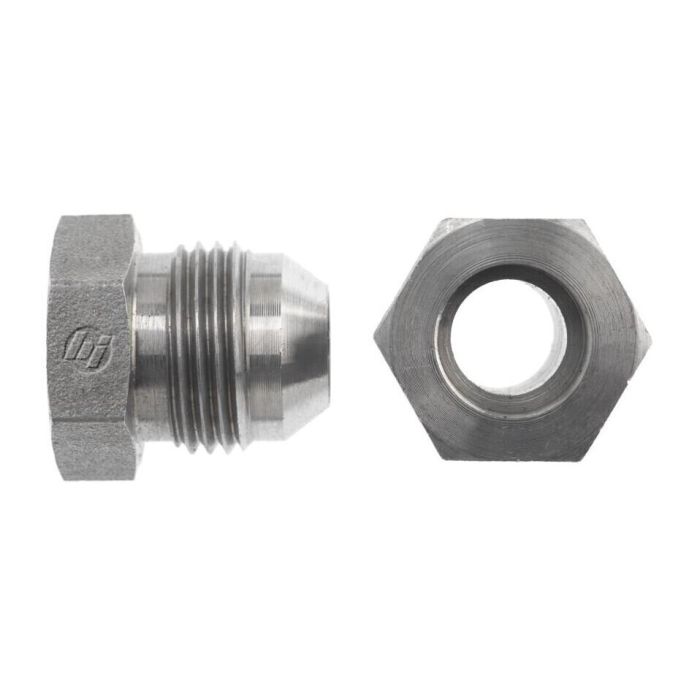

10BORE-08MJ STRAIGHT

Description & Features

The 10BORE-08MJ STRAIGHT is a steel straight fitting in the 0403 series, featuring a tube OD of 5/8-1/2 bore thread and a 3/4-16 male JIC 37-degree flare thread. This fitting conforms to SAE J514 standards.

SKU: 0403-10-08

Supplier Part Number (MPN): 0403-10-08

Alternate Part Numbers: A73014-10-8S, C1ES14

Specifications

Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 0.937 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 0.94 in	l2 Dimensions 1/4 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 5000 psi	Series 0403 Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.631 in	Thread Size 3/4-16

Product Questions & Answers (1)

Question by: Rick M on Aug 12, 2025, 2:29 PM

What size is that tube opening on this fitting?

Answer by: Customer Support on Aug 14, 2025, 6:48 AM

The tube OD is 5/8-1/2 bore thread.
