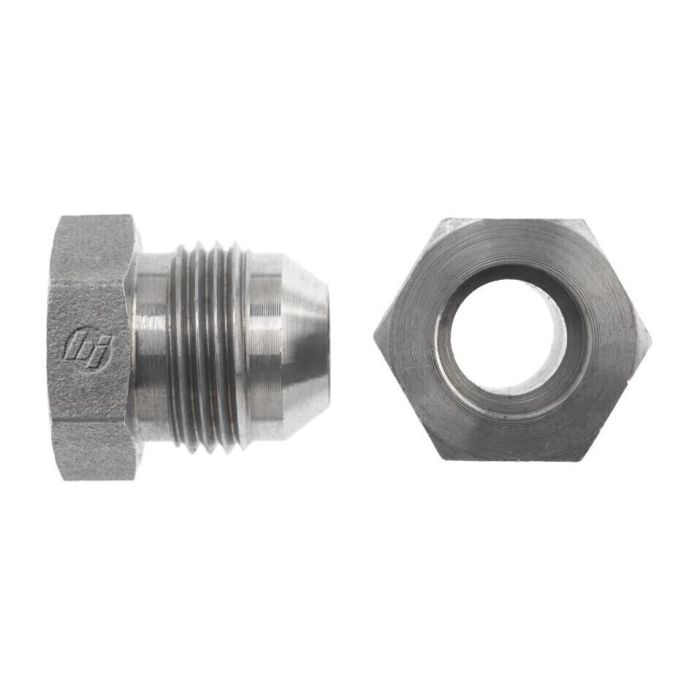

main product photo

10BORE-10MJ STRAIGHT

Ask A Question

Description & Features

The 10BORE-10MJ STRAIGHT by Brennan Industries Inc. is designed for precise industrial use. Crafted from straight steel it demonstrates durability and reliability in demanding environments.

The overall length of this adapter is 1.100 mm with a secondary length of 0.342 mm. It features a thread B1 drill of 0.631 mm and a thread B2 drill of 0.484 mm. The thread B1 size accommodates a 5/8 tube OD while the thread B2 size is 7/8-14 conforming to SAE J514 specifications for male JIC SAE 37-degree flare.

Ideal for high-pressure applications this adapter ensures leak-free connections and efficient fluid transfer. It is part of the 0403 series signifying a seamless fit and consistent performance in various industrial settings.

Supplier Part Number: 0403-10-10

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
1.093 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.94 in
l2 Dimensions
0.342 in
Material
Steel
Material Construction
1018/1020 Steel
Maximum Operating Pressure
5000 psi
Series
0403 Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.631 in
Thread Size
7/8-14
Tube Outside Diameter
5/8 in

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Dale H on Jun 24, 2025, 11:34 AM
Does the male JIC end on this fitting follow the SAE J514 spec? Got a system that's real particular about that.
Answer by: Customer Support on Jun 26, 2025, 6:43 AM
Yes, the 7/8-14 male JIC end meets SAE J514 and uses the standard 37-degree flare seat, so it'll play nice with other J514-compliant components on that side of the connection.
Question by: Kirk K on Dec 8, 2025, 10:08 AM
trying to swap out an old adapter, is this one the straight steel 10 bore to 10MJ with the 7/8-14 JIC flare?
Answer by: Customer Support on Dec 10, 2025, 6:59 AM
Match the ends and you are in the right ballpark. The 10BORE-10MJ STRAIGHT is a straight steel adapter with a B1 end listed as BORE for 5/8 tube OD, and a B2 end that is 7/8-14 male JIC SAE 37 degree flare built to SAE J514.
