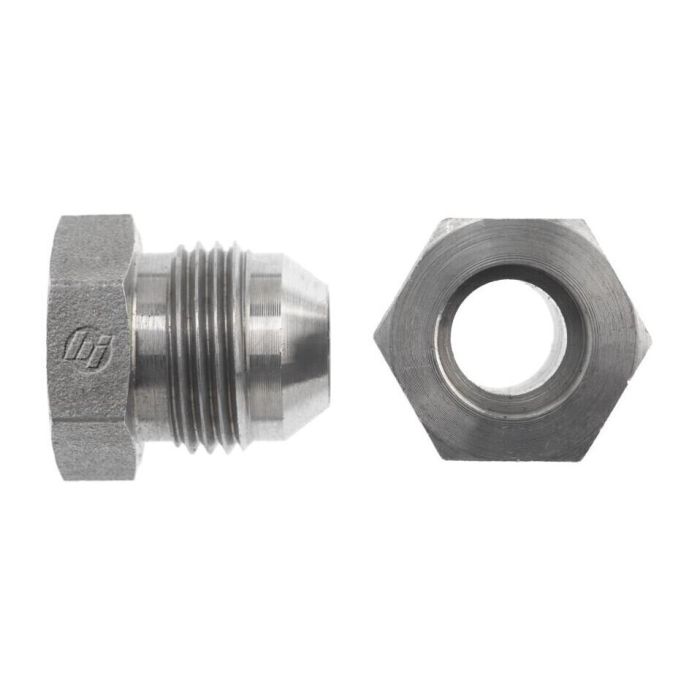

10BORE-12MJ STRAIGHT

Ask A Question

Description & Features

Designed for robust industrial applications, the 10BORE-12MJ STRAIGHT fitting is crafted from high-grade straight steel, ensuring durability and reliability in demanding environments. This fitting features a BORE thread type with a tube OD range of 5/8 to 3/4 inches, providing a secure and efficient connection. The male JIC SAE 37-degree flare thread meets the SAE J514 standard, with a size of 1-1/16-12, ensuring compatibility with a range of hydraulic systems.

The fitting's overall length is 1.280 mm, with an additional length of 0.412 mm for optimal installation flexibility. Manufactured by Brennan Industries, this component is engineered for precision and performance, making it an ideal choice for professionals seeking dependable fluid transfer solutions.

SKU: 0403-10-12

Supplier Part Number (MPN): 0403-10-12

Alternate Part Numbers: A73014-10-12S

Specifications

Connection Size 1
5/8 in
Connection Size 2
3/4 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
1.281 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-1/4
l2 Dimensions
0.412 in
Material
Steel
Material Construction
1018/1020 Steel
Maximum Operating Pressure
5000 psi
Series
0403 Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.631 in
Thread Size
1-1/16-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Wes C on Apr 7, 2025, 10:23 AM
Does this fitting work with a tube OD of 5/8 inch or is it strictly for 3/4?
Answer by: Customer Support on Apr 8, 2025, 4:58 PM
It covers both. The bore thread on this fitting is sized for a tube OD range of 5/8 to 3/4 inch, so either size falls within spec. The male JIC end is a 1-1/16-12 thread built to SAE J514, so as long as your mating connection matches that standard, you're in good shape on both ends.
Question by: Diane T on Mar 25, 2026, 4:24 PM
i’ve got a hose end that’s 1-1/16-12 JIC, is this the straight adapter that matches that thread?
Answer by: Customer Support on Mar 27, 2026, 6:48 AM
Match it up by thread and style. One side on this fitting is a male JIC SAE 37 degree flare with a 1-1/16-12 thread, built to the SAE J514 spec.
Question by: Shane C on Nov 17, 2025, 5:42 PM
What size tubing does this fitting work with? Seems like I got two sizes listed here.
Answer by: Customer Support on Nov 18, 2025, 9:21 PM
It handles tube outer diameters from 5/8 inch up to 3/4 inch, so it's a little flexible on the exact size.
