12BORE-08MJ STRAIGHT

Description & Features

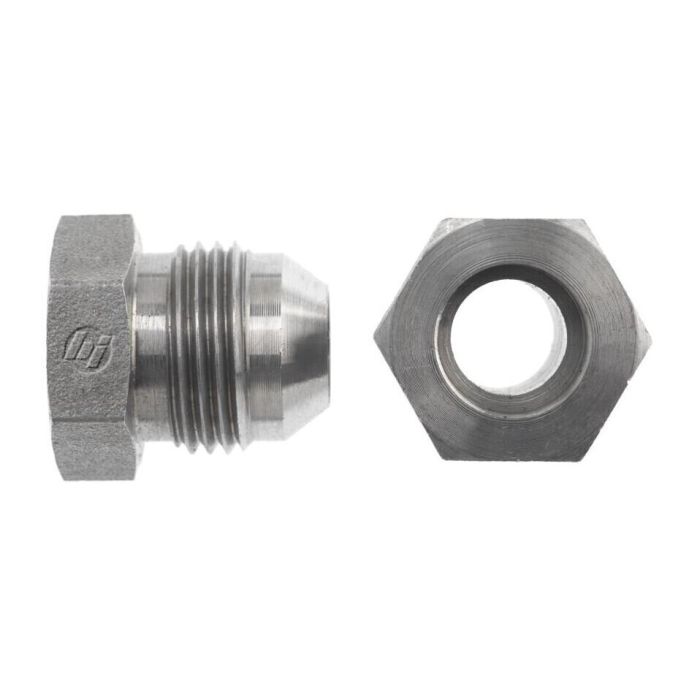

This straight steel fitting, part number 12BORE-08MJ STRAIGHT, features a 3/4-1/2 bore thread and a 3/4-16 Male JIC SAE 37 Degree Flare thread.

It is manufactured by Brennan Industries and conforms to SAE J514 standards. This 0403 series fitting has an overall length of 0.980 inches.

SKU: 0403-12-08

Supplier Part Number (MPN): 0403-12-08

Alternate Part Numbers: A73014-12-8S

Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 0.937 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-1/4	l2 Dimensions 0.323 in	l Dimensions 0.98 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 5000 psi	Series 0403 Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.757 in	Thread Size 3/4-16

Question by: Patty M on Nov 25, 2025, 6:17 AM

So this is a straight fitting, right? Just making sure I'm understanding correctly.

Answer by: Customer Support on Nov 27, 2025, 6:36 AM

That's right, this is a straight steel fitting.
