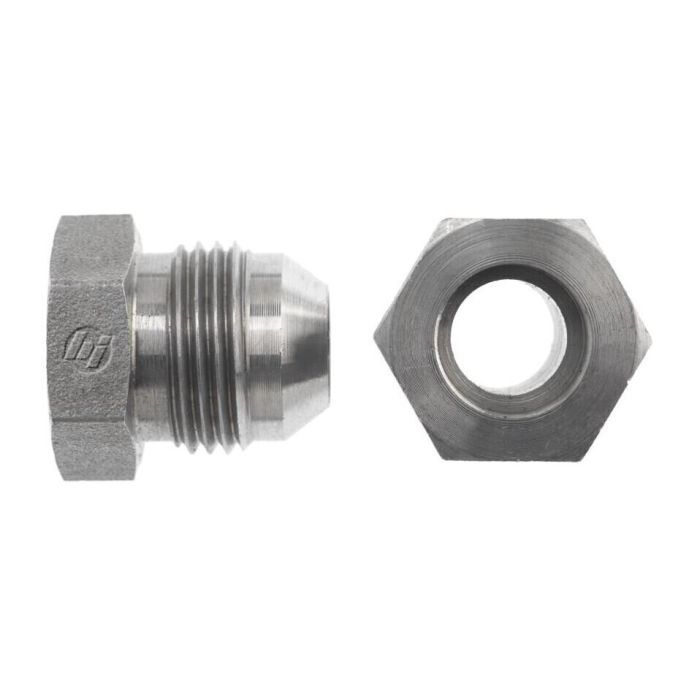

14BORE-14MJ STRAIGHT

Description & Features

Constructed from high-quality straight steel, the 14BORE-14MJ STRAIGHT fitting is designed for robust industrial applications. It features a precise tube outside diameter of 7/8-7/8 and a BORE thread type, ensuring a secure and reliable connection. This fitting is ideal for systems requiring a strong and durable connection in hydraulic setups.

The male JIC SAE 37-degree flare thread, with a size of 1 3/16-12, adheres to the SAE J514 specification, guaranteeing compatibility with standardized hydraulic components. Its overall length of 1.312 mm and overall length L2 of 0.422 mm make it a compact choice for tight spaces, without compromising on performance. Engineered by Brennan Industries, this fitting provides dependable performance in demanding environments.

SKU: 0403-14-14

Supplier Part Number (MPN): 0403-14-14

Alternate Part Numbers: A73014-14S

Specifications

Connection Size 1 7/8 in	Connection Size 2 7/8 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 1.312 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 1-3/8 in	l2 Dimensions 0.422 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 4000 psi	Series 0403 Series	Thread 2 Drill Dimensions 0.719 in	Thread B1 Drill Dimensions 0.881 in	Thread Size 1-3/16-12

Product Questions & Answers (1)

Question by: Dwayne T on May 27, 2025, 12:39 PM

Will this fitting hold up in a hydraulic system that sees pretty constant use, or is it more for lighter duty stuff?

Answer by: Customer Support on May 29, 2025, 6:30 AM

Designed for robust industrial applications, this fitting should provide dependable performance even in demanding environments.
