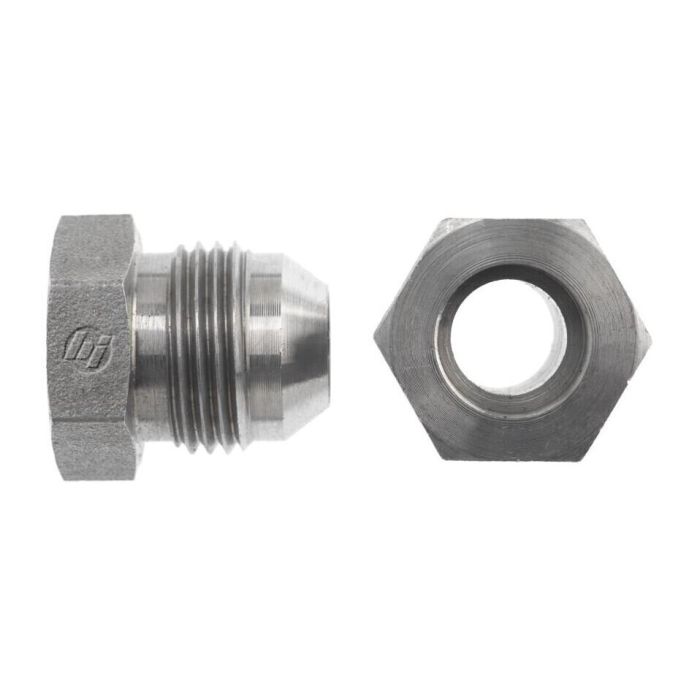

main product photo

16BORE-12MJ STRAIGHT

Ask A Question

Description & Features

This straight steel fitting, part number 16BORE-12MJ STRAIGHT, features a bore thread on one end and a Male JIC SAE 37 Degree Flare on the other. The bore thread size is Tube OD 1-3/4, while the Male JIC SAE 37 Degree Flare thread size is 1 1/16-12, manufactured to SAE J514 specifications.

This fitting is part of the 0403 series from Brennan Industries.

SKU: 0403-16-12

Supplier Part Number (MPN): 0403-16-12

Alternate Part Numbers: A73014-16-12S

Specifications

Connection Size 1
1 in
Connection Size 2
3/4 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
1.281 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
l2 Dimensions
0.416 in
Material
Steel
Material Construction
1018/1020 Steel
Maximum Operating Pressure
4000 psi
Series
0403 Series
Thread 2 Drill Dimensions
0.609 in
Thread B1 Drill Dimensions
1.006 in
Thread Size
1-1/16-12

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Kent S on Oct 8, 2025, 12:34 PM
Will this fitting work with standard JIC fittings I already have on my equipment?
Answer by: Customer Support on Oct 10, 2025, 6:50 AM
this fitting has a Male JIC SAE 37 Degree Flare on one end, made to SAE J514 specs, so it should play nice with your existing JIC setup.
