16BORE - 16MJ STRAIGHT SS

Description & Features

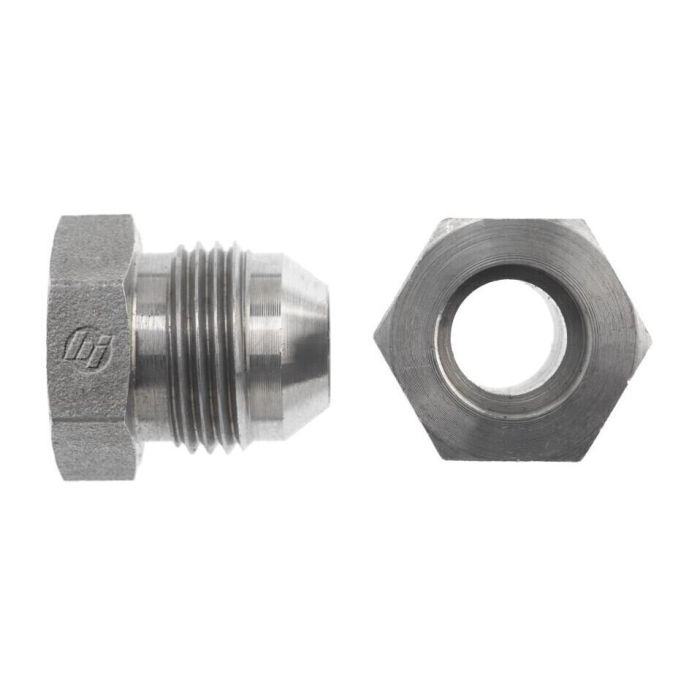

This straight stainless steel fitting, the 16BORE - 16MJ STRAIGHT SS, is manufactured by Brennan Industries. It features a bore thread with a tube OD of 1" and a male JIC SAE 37-degree flare thread sized at 1 5/16-12, conforming to SAE J514 standards.

The fitting is constructed from high-quality stainless steel for durability and corrosion resistance. The Brennan Overall Length L is 1.320 mm, with a Brennan Overall Length L2 of 0.409 mm. The Thread B1 Drill size is 1.006 mm, while the Thread B2 Drill size is 0.844 mm.

SKU: 0403-16-16-SS

Supplier Part Number (MPN): 0403-16-16-SS

Specifications

Brand BRENNAN	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Fitting Type Adapter	Hex Size 1-3/8 in	Hose Dash Size 16	l2 Dimensions 0.409 in	l Dimensions 1.32 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 4000 psi	Series 0403 Series	Thread 2 Drill Dimensions 0.844 in	Thread B1 Drill Dimensions 1.006 in	Thread B2 Drill Dimensions 0.844 in	Thread Size 1-5/16-12	Tube Outside Diameter 1 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Price	Action
0403-04-04-SS	1/4 in	1/4 in
0403-06-06-SS	3/8 in	3/8 in

Product Questions & Answers (1)

Question by: Judy S on Aug 5, 2025, 2:11 PM

What size is the tube that fits with this?

Answer by: Customer Support on Aug 7, 2025, 6:47 AM

This straight fitting is made for a 1" outer diameter tube.
