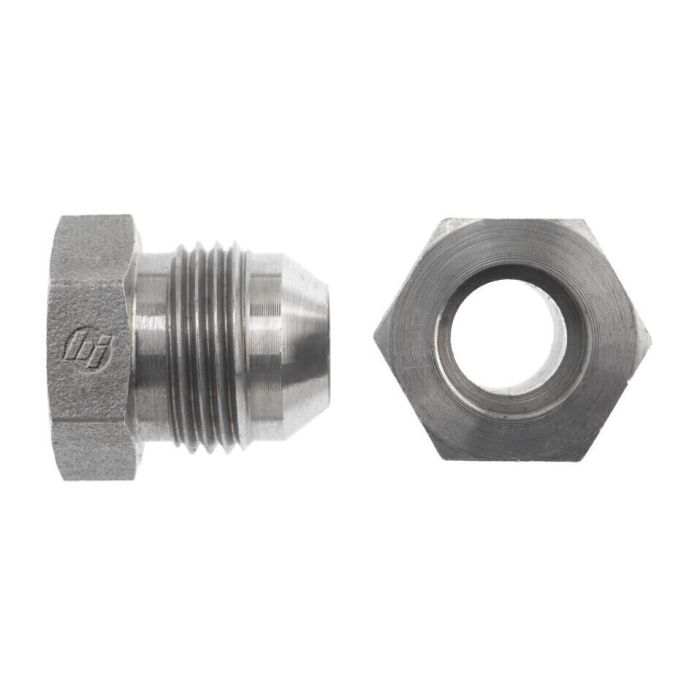

24BORE-24MJ STRAIGHT

Description & Features

Crafted from high-grade straight steel, the 24BORE-24MJ STRAIGHT fitting ensures reliability and durability in demanding hydraulic applications. Designed for compatibility with systems requiring a bore connection with a tube outer diameter of 1-1/2 inches, it features a robust male JIC SAE 37-degree flare thread. This fitting is manufactured to the SAE J514 specification, ensuring industry-standard quality and performance.

The fitting boasts precise engineering with a thread size of 1 7/8-12, making it suitable for various industrial settings. With an overall length of 1.840 mm and a drill diameter of 1.507 mm on the bore side, this component is ideal for facilitating efficient fluid transfer in hydraulic systems. The product is part of the Brennan 0403 series, known for its precision and reliability.

SKU: 0403-24-24

Supplier Part Number (MPN): 0403-24-24

Alternate Part Numbers: A73014-24S

Specifications

Brand BRENNAN	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 1.656 in L	Finish Trivalent Zinc-Plated	Fitting Type Adapter	Hex Size 2 in	l2 Dimensions 0.757 in	l Dimensions 1.84 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 3000 psi	Series 0403 Series	Thread 2 Drill Dimensions 1.312 in	Thread B1 Drill Dimensions 1.507 in	Thread Size 1-7/8-12	Tube Outside Diameter 1-1/2 in

Similar Products

Model Number	Connection Size 1	Connection Size 2	Thread Size
0403-04-04	1/4 in	1/4 in	7/16-20
0403-05-05	5/16 in	5/16 in	1/2-20
0403-06-06	3/8 in	3/8 in	9/16-18
0403-06-08	3/8 in	1/2 in	3/4-16
0403-08-06	1/2 in	3/8 in	9/16-18
0403-08-08	1/2 in	1/2 in	3/4-16
0403-08-10	1/2 in	5/8 in	7/8-14
0403-10-08	5/8 in	1/2 in	3/4-16
0403-10-10	5/8 in	5/8 in	7/8-14
0403-10-12	5/8 in	3/4 in	1-1/16-12
0403-12-08	3/4 in	1/2 in	3/4-16
0403-12-10	3/4 in	5/8 in	7/8-14
0403-12-12	3/4 in	3/4 in	1-1/16-12
0403-14-14	7/8 in	7/8 in	1-3/16-12
0403-16-12	1 in	3/4 in	1-1/16-12
0403-16-16	1 in	1 in	1-5/16-12
0403-20-20	1-1/4 in	1-1/4 in	1-5/8-12
0403-32-32	2 in	2 in	2-1/2-12
