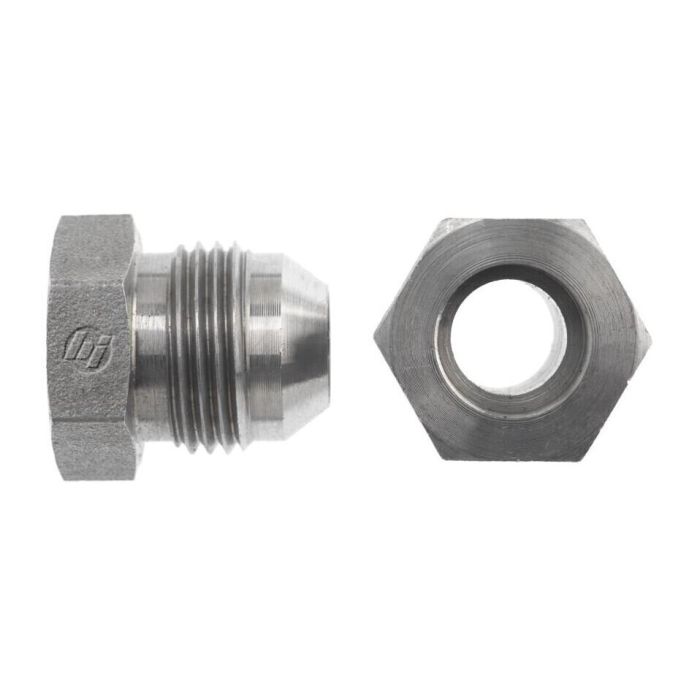

main product photo

32BORE-32MJ STRAIGHT

Ask A Question

Description & Features

Manufactured from straight steel, the 32Bore-32MJ Straight is a Brennan Industries hydraulic fitting designed to connect a 2-inch OD bore end to a 2½-12 Male JIC SAE 37-degree flare thread. The male JIC end conforms to SAE J514, making it a standard-compliant choice for hydraulic line assemblies where a bore-to-JIC transition is required.

With an overall length of 2.160 mm and a compact secondary length of 0.830 mm, this straight fitting suits space-conscious installations. The bore side accommodates a 2.008 mm drill diameter, while the JIC side is matched to a 1.781 mm drill diameter. California residents should note this product is subject to a Proposition 65 warning.

SKU: 0403-32-32

Supplier Part Number (MPN): 0403-32-32

Alternate Part Numbers: A73014-32S

Specifications

Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Bore, Male JIC
Connection Type 1
Bore
Connection Type 2
Male SAE JIC
Dimension Standards
SAE J514
Dimensions
2.046 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
2-5/8 in
l2 Dimensions
0.83 in
l Dimensions
2.16 in
Material
Steel
Material Construction
1018/1020 Steel
Series
0403 Series
Thread 2 Drill Dimensions
1.781 in
Thread B1 Drill Dimensions
2.008 in
Thread Size
2-1/2-12
Tube Outside Diameter
2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Lyle M on Mar 30, 2026, 2:57 PM
What size drill bit do I need for the bore end of this fitting?
Answer by: Customer Support on Apr 1, 2026, 6:26 AM
You'll want to use a 2.008 mm drill diameter for the bore side of this straight fitting.
