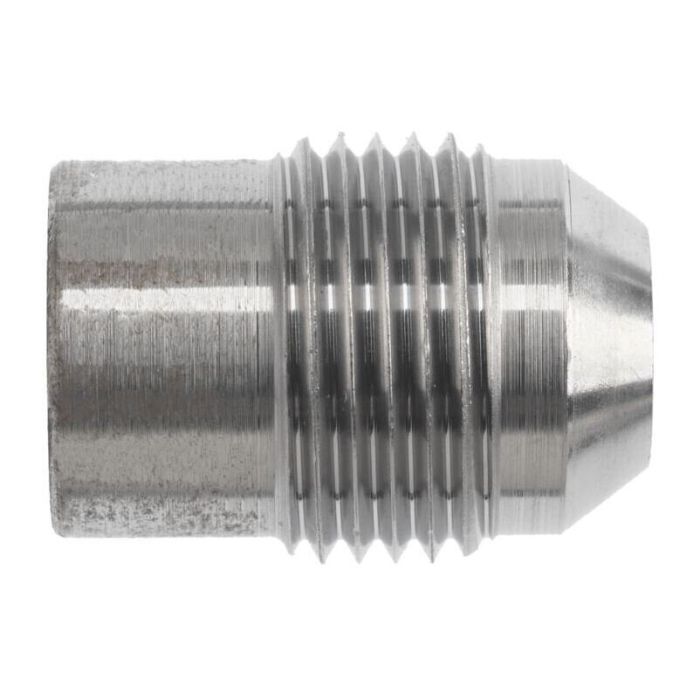

BRENNAN 08MJ-08 TUBE SPUD

Description & Features

The BRENNAN 08MJ-08 tube spud features a straight steel construction. It has a tube spud thread type B1 and a male JIC SAE 37 degree flare thread type B2.

The thread B1 size is tube OD 1/2, with a thread B1 drill of 0.628 mm. The thread B2 size is 3/4-16 with SAE J514 specification, and a thread drill of 0.391 mm. Its overall length is 0.940 mm.

SKU: 0403-TS-08-08

Supplier Part Number (MPN): 0403-TS-08-08

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Male JIC, Tube Spud	Connection Type 1 Male SAE JIC	Connection Type 2 SAE Tube Spud	Dimension Standards SAE J514	Dimensions 0.391 in ID x 0.628 in OD x 0.94 in L	Finish Trivalent Zinc-Plated	Fitting Type Spud	l Dimensions 0.94 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 6000 psi	Series 0403-TS Series	Thread 2 Drill Dimensions 0.391 in	Thread Size 3/4-16	Tube OD 1/2 in	Tube Outside Diameter 1/2 in

Product Questions & Answers (1)

Question by: Cheryl Y on Mar 3, 2026, 7:16 AM

What size is the B2 thread on this spud?

Answer by: Customer Support on Mar 4, 2026, 7:57 AM

The B2 thread size is 3/4-16, and it meets the SAE J514 specification.
