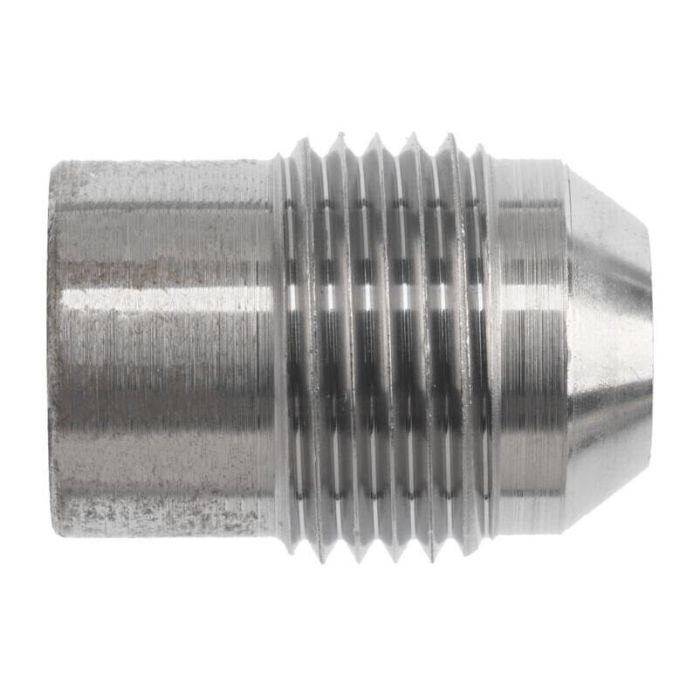

main product photo

BRENNAN 16MJ-16 TUBE SPUD

Ask A Question

Description & Features

The BRENNAN 16MJ-16 TUBE SPUD features a straight steel raw material type and belongs to the 0403-TS series. It is designed with a tube spud thread (B1) sized for 1" OD tubing.

This component incorporates a male JIC SAE 37-degree flare thread (B2) with a size of 1-5/16-12 and adheres to SAE J514 specifications. The overall length of the fitting is 1.320 mm.

SKU: 0403-TS-16-16

Supplier Part Number (MPN): 0403-TS-16-16

Specifications

Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male JIC, Tube Spud
Connection Type 1
Male SAE JIC
Connection Type 2
SAE Tube Spud
Dimension Standards
SAE J514
Dimensions
0.844 in ID x 1.159 in OD x 1.32 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Spud
l Dimensions
1.32 in
Material
Steel
Material Construction
1018/1020 Steel
Maximum Operating Pressure
4000 psi
Series
0403-TS Series
Thread 2 Drill Dimensions
0.844 in
Thread Size
1-5/16-12
Tube Outside Diameter
1 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Phil P on Feb 12, 2026, 7:35 AM
Just wanna make sure I'm readin' this right, this spud's got a 1-5/16-12 thread size?
Answer by: Customer Support on Feb 13, 2026, 9:38 AM
Yes, that's correct. The male JIC SAE 37-degree flare thread (B2) on this tube spud is sized at 1-5/16-12.
