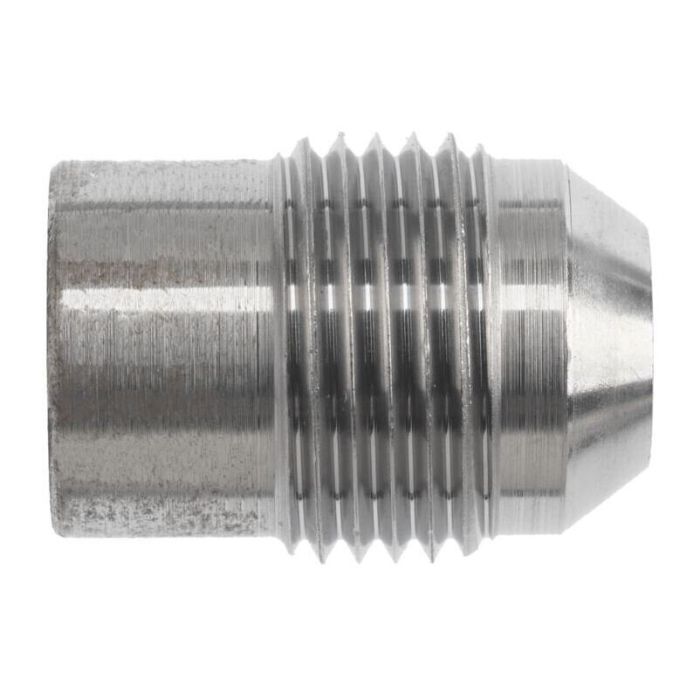

BRENNAN 20MJ-20 TUBE SPUD

Designed for hydraulic tube connections, the Brennan 20MJ-20 Tube Spud is a straight steel fitting that transitions between a 1-1/4 inch tube OD spud end and a 1 5/8-12 Male JIC SAE 37-degree flare thread. The flare end conforms to SAE J514, making it suitable for use in standard JIC hydraulic assemblies requiring a reliable, angle-seated seal.

Manufactured from straight steel, this fitting measures 1.490 inches in overall length and is part of Brennan Industries' 0403-TS series. The tube spud end accepts a 1.504 inch OD tube, while the male JIC end has a 1.078 inch drill dimension. Its compact straight configuration suits applications where a direct, low-profile tube-to-JIC connection is needed in tight hydraulic circuit layouts.

California Proposition 65 warning applies to this product.

SKU: 0403-TS-20-20

Supplier Part Number (MPN): 0403-TS-20-20
