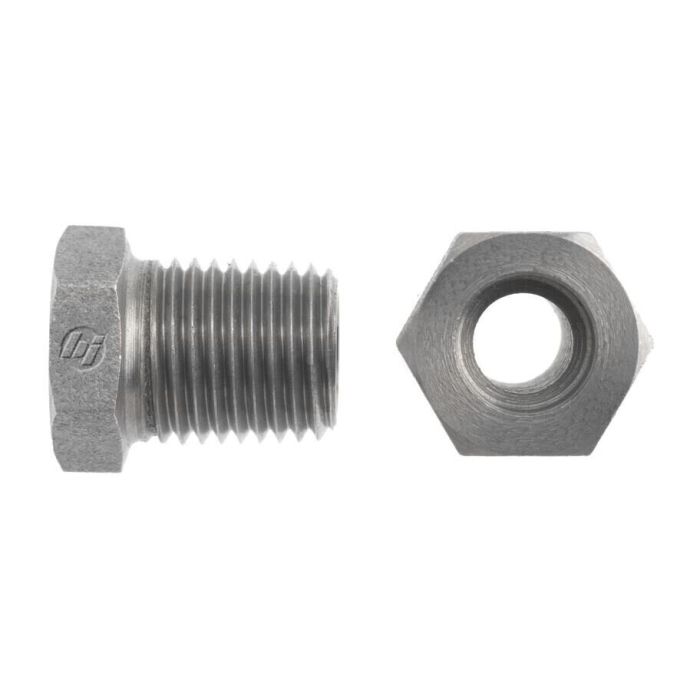

BRENNAN 0404-32-32 (BORE MP STRAIGHT)

Ask A Question

Description & Features

This Brennan 0404-32-32 straight fitting features a 2-11 1/2 Male NPTF thread per SAE J476 specifications on one end and a 2 Tube OD Bore thread on the other. Constructed from straight steel, this fitting is part of the 0404 series.

Its NPTF thread has a 1.938 mm drill size, while the Bore thread has a 2.008 mm drill size. The overall length is 1.781 inches (45.24 mm).

SKU: 0404-32-32

Supplier Part Number (MPN): 0404-32-32

Alternate Part Numbers: 621-0950, BR-0404-32-32

Specifications

Connection Size 1
2 in
Connection Size 2
2 in
Connection Type
Bore, MNPT
Connection Type 1
Bore
Connection Type 2
Male SAE 30 deg NPTF
Dimension Standards
SAE J476, SAE J514
Fitting Type
Adapter
Hex Size
2-5/8 in
Hose Dash Size
32
l2 Dimensions
3/4 in
l Dimensions
1.781 in
Material
Steel
Material Construction
AISI 1018/1020 Steel
Series
0404 Series
Thread 2 Drill Dimensions
1.938 in
Thread B1 Drill Dimensions
2.008 in
Thread B2 Drill Dimensions
1.938 in
Thread Size
2-11-1/2
Tube Outside Diameter
2 in

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Rick P on Jun 24, 2025, 7:49 AM
What size is that tube OD bore?
Answer by: Customer Support on Jun 25, 2025, 5:22 PM
This straight fitting has a 2 Tube OD Bore thread size.
