DANFOSS / EATON FITTING

Ask A Question

Description & Features

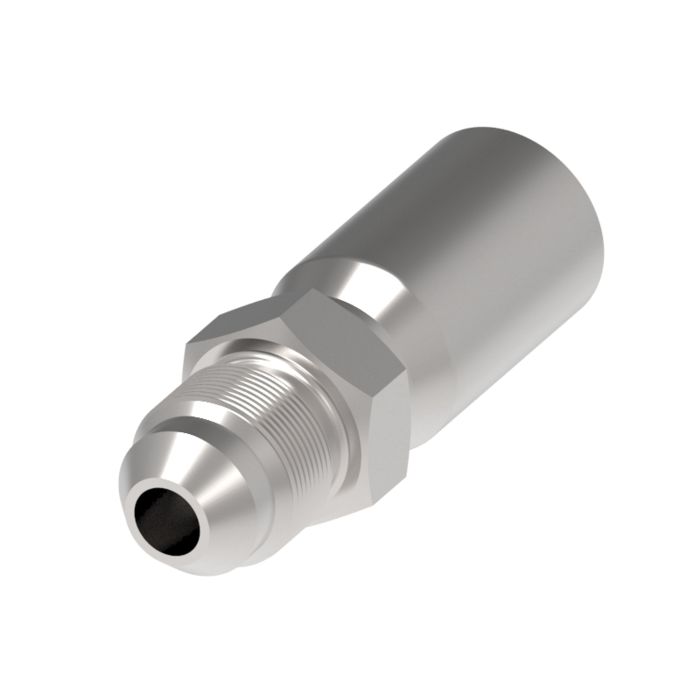

Danfoss / Eaton E Series Crimp Hose Fittings JIC 37 Male Rigid

Specifications

Brand
Danfoss
a Dimensions
1.92 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Construction Style
Crimp
Cut-Off Factor
0.98 in
Dimensions
1.92 in L
End Connection Torque
18 to 20 lb-ft
End Gender 1
Male
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses
Hex Size
5/8 in
Hose Dash Size
04
Inside Diameter
0.16 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
E Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (3)

Question by: Harold R on Sep 22, 2025, 3:02 PM
Will this fitting work with a hydraulic setup on my tractor? Just need somethin' reliable for general use.
Answer by: Customer Support on Sep 24, 2025, 7:04 AM
This fitting is well-suited for general purpose low and medium pressure hydraulic applications. If your tractor's hydraulics fall within those parameters, it should work fine.
Question by: Bobby R on May 6, 2025, 1:57 PM
got a -4 hose, is this 04E-506 the right crimp end for it?
Answer by: Customer Support on May 7, 2025, 9:15 PM
For a -4 hose dash size, this fitting matches that dash size and it is an E Series crimp hose fitting with a JIC 37 male rigid end.
Question by: Lance M on Jun 3, 2025, 7:21 PM
what hose dash size does this fitting work with, and is it meant for regular everyday hydraulic lines or something more heavy duty?
Answer by: Customer Support on Jun 5, 2025, 6:15 AM
Built for general purpose low and medium pressure hydraulic systems, this fitting is sized for -4 dash hose. If your application involves shock loads or pressure spikes, the product data points to H277 or H435 hose as the better fit for those conditions.
