E Series fitting

Description & Features

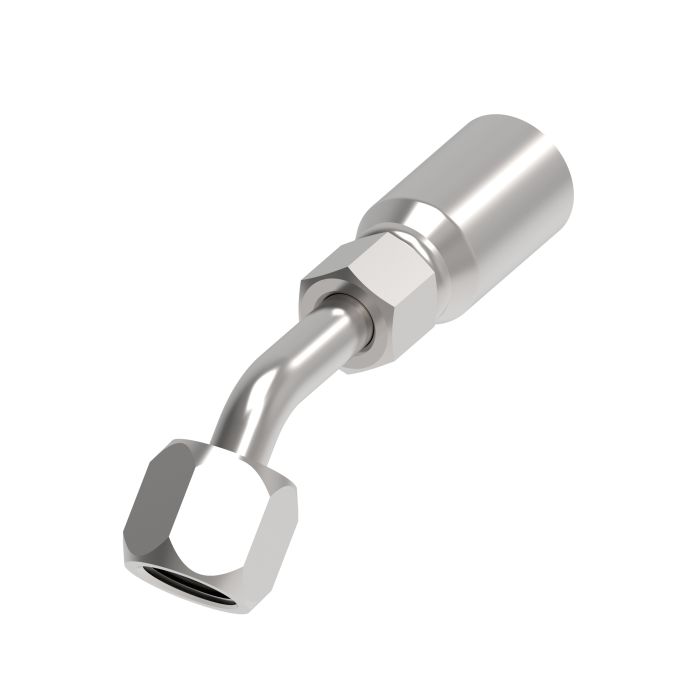

Danfoss / Eaton E Series Crimp Hose Fittings JIC 37 Female Swivel 45 Tube Elbow

Brand Danfoss	a Dimensions 2.47 in	Compatible Hose ID 0.31 in	Connection Size 1 1/4 in	Connection Size 2 1/4 in	Connection Type Hose, Male JIC Swivel	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 1.53 in	Dimensions 2.75 in L x 0.57 in W x 0.9 in H	Drop Dimensions 0.33 in	End Gender 1 Female	End Size 1 7/16 in	Finish Zinc-Plated	Fitting Type 45 deg Elbow	For Use With H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses	Hex Size 0.563 x 0.438 in	Hose Dash Size 06	Inside Diameter 0.15 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series E Series	Thread Sealant Without Thread Sealant	Thread Size 7/16-20

Question by: Sheila W on May 16, 2025, 3:05 PM

got a -4 hose and need a 45 degree JIC female swivel, is this the right style?

Answer by: Customer Support on May 18, 2025, 1:21 PM

For a -4 hose assembly, this fitting matches that dash size and it is a JIC 37 female swivel in a 45 degree tube elbow configuration.
