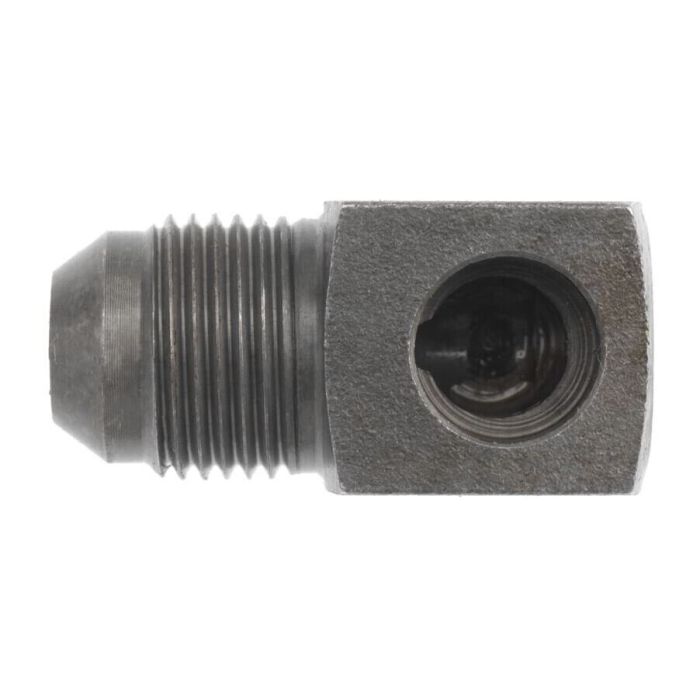

06BORE-06MJ 90 DEG ELBOW

Description & Features

Constructed from straight steel, the 06Bore-06MJ 90 Deg Elbow provides a right-angle transition between a 3/8" tube OD bore connection and a 9/16-18 Male JIC SAE 37-degree flare thread. The male JIC end conforms to SAE J514, making it compatible with standard JIC hydraulic fittings and fluid lines.

With a centerline length of 1.062" and an overall length of 1.375", this fitting is compact enough for installations where routing space is limited. The 90-degree configuration allows directional changes in tubing runs without bending or cutting tube. Part of the Brennan 0500 Series, it is subject to California Proposition 65 warnings.

SKU: 0500-06-06

Supplier Part Number (MPN): 0500-06-06

Alternate Part Numbers: BR-0500-06-06

Specifications

Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 1.375 in L	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	l Dimensions 1-3/8 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 6000 psi	Series 0500 Series	Thread 2 Drill Dimensions 0.297 in	Thread B1 Drill Dimensions 0.379 in	Thread Size 9/16-18	Tube OD 3/8 in	Tube Outside Diameter 0.38 in

Product Questions & Answers (1)

Question by: Dwayne F on Jan 10, 2026, 3:22 PM

What size tubing does this elbow work with? I wanna make sure it's the right fit.

Answer by: Customer Support on Jan 12, 2026, 6:12 AM

This elbow fitting is designed for use with 3/8" OD tubing for the bore connection.
