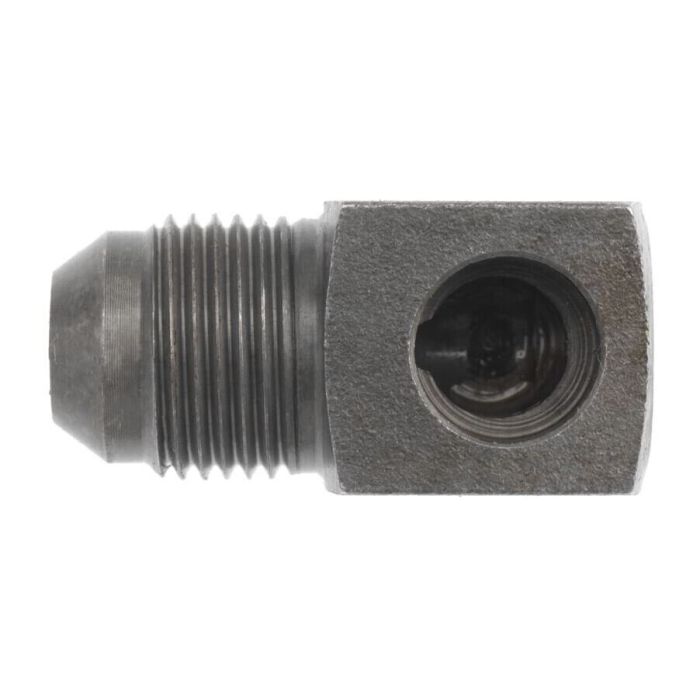

08BORE-08MJ 90 DEG ELBOW

Description & Features

The 08BORE-08MJ 90 DEG ELBOW features a 1/2" tube OD bore thread and a 3/4-16 male JIC 37-degree flare thread, conforming to SAE J514 standards. Constructed from straight steel, this elbow fitting ensures reliable performance in demanding hydraulic applications.

With a centerline length of 1.250 mm and an overall length of 1.656 mm, this 90-degree elbow provides a compact and efficient connection solution.

SKU: 0500-08-08

Supplier Part Number (MPN): 0500-08-08

Specifications

Connection Size 1 1/2 in	Connection Size 2 1/2 in	Connection Type Bore, Male JIC	Connection Type 1 Bore	Connection Type 2 Male SAE JIC	Dimension Standards SAE J514	Dimensions 1.656 in L	Finish Trivalent Zinc-Plated	Fitting Type 90 deg Elbow	l Dimensions 1.656 in	Material Steel	Material Construction 1018/1020 Steel	Maximum Operating Pressure 6000 psi	Series 0500 Series	Thread 2 Drill Dimensions 0.391 in	Thread B1 Drill Dimensions 0.506 in	Thread Size 3/4-16	Tube OD 1/2 in	Tube Outside Diameter 1/2 in

Product Questions & Answers (1)

Question by: Ray S on May 24, 2025, 7:39 PM

What size tubing does this elbow fit? Just wanna make sure it's the right one before I order.

Answer by: Customer Support on May 26, 2025, 7:59 AM

This elbow fitting is made for a 1/2" tube OD bore thread.
