Danfoss / Eaton Hose End E Series

Description & Features

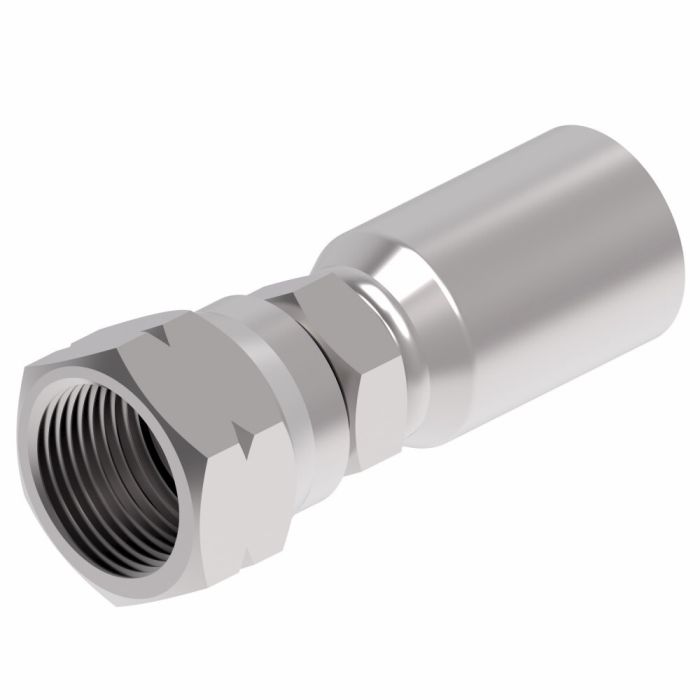

Danfoss / Eaton E Series Crimp Hose Fittings SAE 45 Female Swivel

Brand Danfoss	a Dimensions 2.03 in	Connection Size 1 5/16 in	Connection Size 2 3/8 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 1.1 in	Dimensions 2.06 in L x 0.75 in W x 0.87 in H	End Gender 1 Female	End Size 1 5/8 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses	Hex Size 0.56 x 0.75 in	Hose Dash Size 04	Inside Diameter 0.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code B	Series 05E Series	Thread Sealant Without Thread Sealant	Thread Size 5/8-18	Thread Type UNF

Question by: Warren T on Oct 24, 2025, 5:32 PM

trying to match up an old hose end, is 05E-406 a female swivel JIC 37 fitting?

Answer by: Customer Support on Oct 25, 2025, 8:01 PM

Yes, 05E-406 is an E Series crimp hose fitting with a female swivel JIC 37 degree end.
