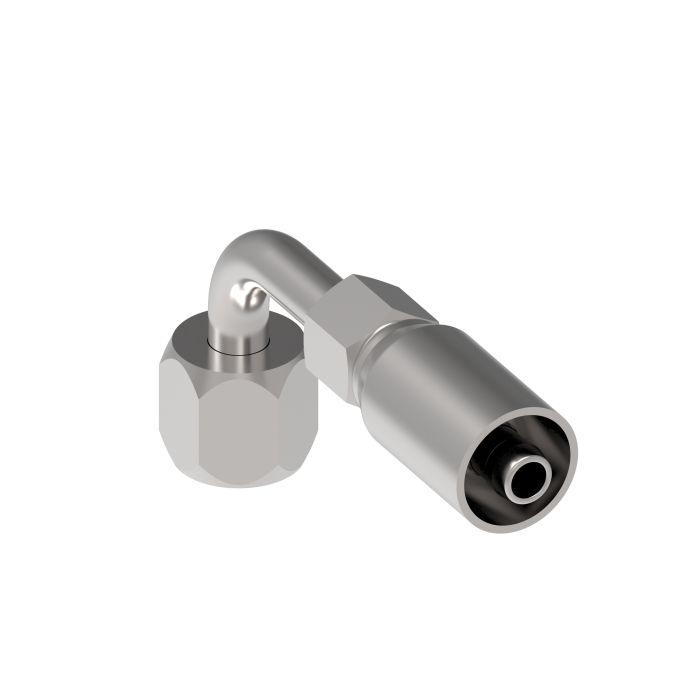

main product photo

DANFOSS / EATON FITTING

Ask A Question

Description & Features

This high-performance fitting, featuring Dura-Kote plating, provides exceptional corrosion resistance. The innovative design ensures reliability and extended uptime.

Engineered to optimize hose assembly life, this fitting is manufactured from durable carbon steel for robust performance in diverse hydraulic applications, including general-purpose low and medium pressure hydraulics.

Key specifications include a JIC 37 female end type 1, with a 0.5625 end size and a Line/Hose/Tube end type 2. The hex size 2 is 0.56, and the hose dash size is -5.

With a drop dimension of 0.8500 and a product width of 0.69, this fitting meets the stringent demands of industrial standards. Ideal for use with H277 or H435 hoses where shock hazards are present, it is designed to enhance system durability.

Supplier Part Number: 05E-666

MPN: EAR99

Specifications

Brand
Danfoss
a Dimensions
1.78 in
Compatible Hose ID
0.31 in
Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.85 in
Drop Dimensions
0.85 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses
Hex Size
11/16 in
Hose Dash Size
05
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
C
Series
05E Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (2)

Question by: Neal C on Apr 14, 2025, 10:38 AM
Will this fitting hold up okay in a hydraulic system that sees regular pressure spikes?
Answer by: Customer Support on Apr 16, 2025, 6:01 AM
This fitting is manufactured from durable carbon steel, and it's designed to be used in general purpose low and medium pressure hydraulic applications. It's also recommended for use with H277 or H435 hoses where shock hazards are present, so it should be suitable for systems with pressure spikes.
Question by: Lance M on Dec 1, 2025, 7:10 AM
trying to swap out an old hose end, is this one the JIC 37 female with the -5 hose size?
Answer by: Customer Support on Dec 2, 2025, 6:23 PM
It is a JIC 37 female on end 1 with an end size of 0.5625, and it is built for a -5 hose dash size.
