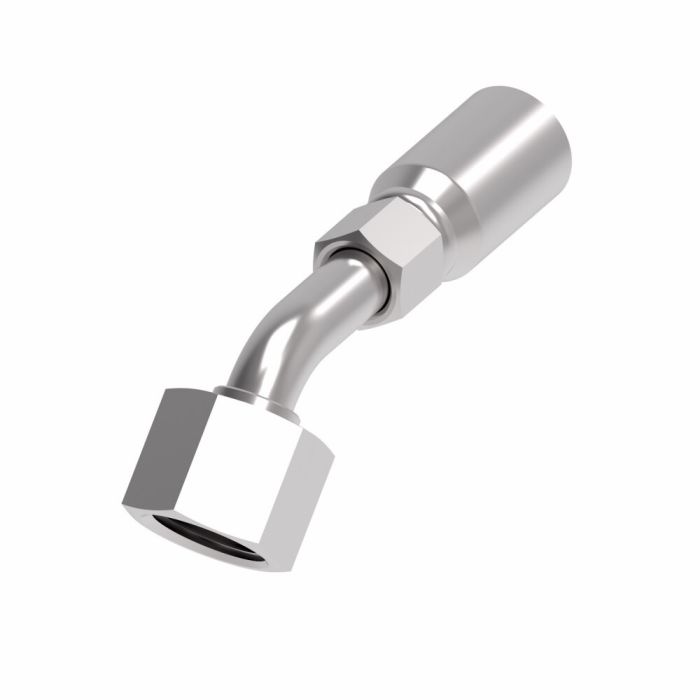

main product photo

Crimp Fitting 45Deg FForS

Ask A Question

Description & Features

This carbon steel crimp fitting features a 45-degree female ORS swivel for connecting lines and hoses in hydraulic systems. The 0.6875-inch MPT end ensures a secure connection.

Engineered for general purpose low and medium pressure hydraulics, this Aeroquip fitting offers Dura-Kote plating for superior corrosion resistance. The innovative design delivers reliable performance and maximum uptime, extending hose assembly life. Use H277 or H435 where shock hazards exist.

SKU: 05E-L66

Supplier Part Number (MPN): 05E-L66

Specifications

Brand
Danfoss
a Dimensions
1.92 in
Compatible Hose ID
0.31 in
Compatible Tube OD
0.37 in
Connection Size 1
5/16 in
Connection Size 2
3/8 in
Connection Type
FNPT, Hose
Connection Type 1
Hose
Connection Type 2
Female NPT
Construction Style
Crimp
Cut-Off Factor
1.77 in
Drop Dimensions
0.43 in
End Connection Torque
27 to 36 lb-ft
End Gender 1
Female
End Size 1
11/16 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses
Hex Size
0.81 in
Hose Dash Size
05
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
C
Series
05E Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN
Tube Outside Diameter 1
0.37 in

Product Questions & Answers (1)

Question by: Danny P on Jan 4, 2026, 8:51 AM
What size is the MPT end on this fitting? Just want to make sure it's what I need.
Answer by: Customer Support on Jan 5, 2026, 8:00 PM
The MPT end measures 0.6875 inches.
