06904E-102

Description & Features

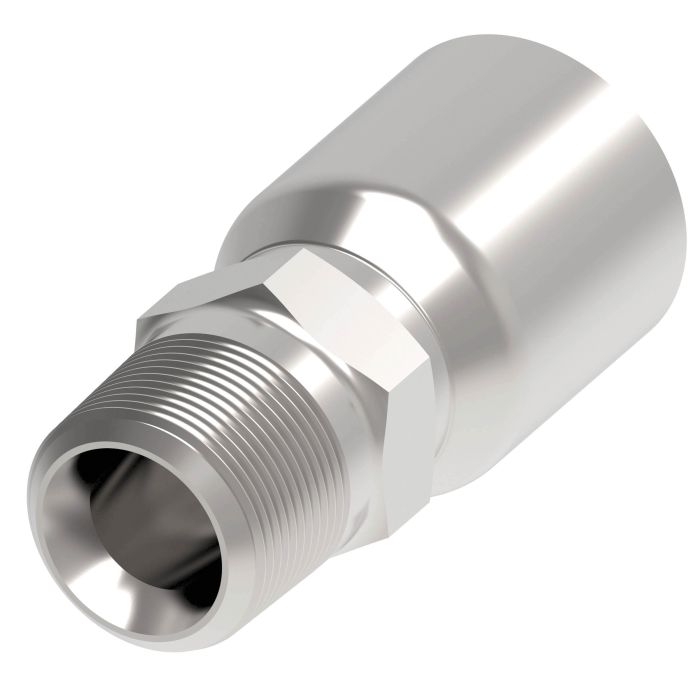

A straight male pipe fitting in the permanent (non-adjustable) configuration, the 06904E-102 is designed for use in hydraulic line assemblies where a fixed, rigid connection is required. This type of straight male pipe fitting threads directly into a port or mating female connector, providing a compact, inline flow path without angular offset.

With minimal product data available, the fitting's precise material, thread size, and pressure rating should be confirmed against the manufacturer's specification sheet prior to installation in a hydraulic circuit.

SKU: 06904E-102

Supplier Part Number (MPN): 06904E-102

Specifications

Connection Size 1 1/4 in	Connection Size 2 1/8 in	Connection Type Hose, MPT	Connection Type 1 Hose	Connection Type 2 Male Rigid Pipe	Cut-Off Factor 3/4 in	Dimension Standards SAE 100R5	Dimensions 1.75 in L x 0.68 in W x 0.68 in H	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With H059, H069, H166, H169, H229, H239, H366 and H569 Series Hoses	Hex Size 7/16 in	Hose Dash Size 04	Material Steel	Material Construction Carbon Steel	Series 069E Series	Thread Size 1/8-27

Product Questions & Answers (2)

Question by: Donna C on Aug 29, 2025, 9:26 AM

Will this fitting work with a R5 type hose?

Answer by: Customer Support on Aug 30, 2025, 9:40 PM

Yes, this fitting is specifically made for R5 type hoses, as indicated in the product name "R5 STR M PIPE".

Question by: Brett M on Aug 5, 2025, 7:57 AM

trying to match up a hose end, what exactly is 06904E-102 supposed to be?

Answer by: Customer Support on Aug 7, 2025, 7:00 AM

Function-wise, it is a permanent hose fitting for an R5 hose with a straight male pipe connection on the end.
