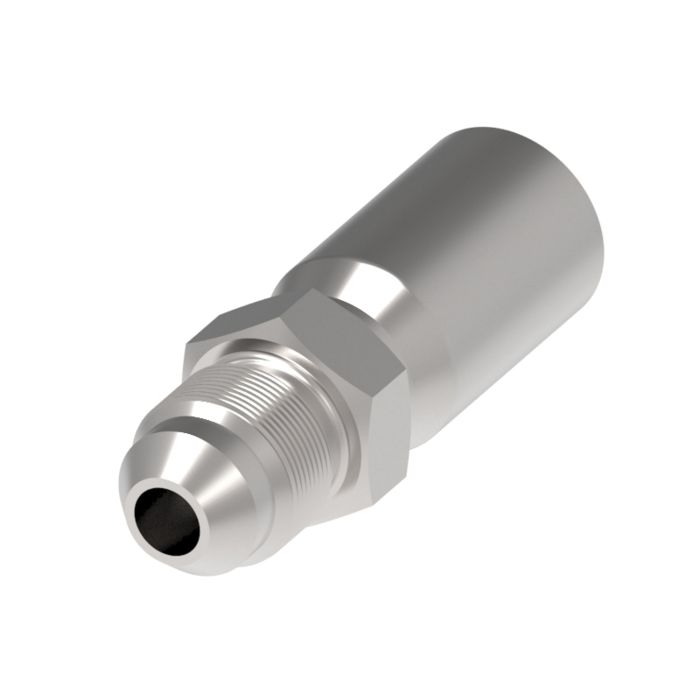

main product photo

DANFOSS / EATON FITTING

Ask A Question

Description & Features

Designed for general purpose low and medium pressure hydraulic systems, this carbon steel male pipe rigid fitting belongs to the Eaton E Series crimp hose fitting line. It connects a 1/4-18 NPT male thread on one end to a -6 dash size hose end, making it a practical choice for hose assembly work where shock hazards are not a primary concern, Eaton recommends H277 or H435 series fittings where shock conditions apply.

The Danfoss / Eaton Fitting features Dura-Kote plating, which provides corrosion resistance suited to demanding service environments. The E Series design is system-engineered to support extended hose assembly service life, with a 1/4-18 thread specification on both ends and a hex size of 0.56. Construction from carbon steel keeps the fitting compatible with a broad range of hydraulic fluids, fluid compatibility documentation is available from Eaton for reference.

SKU: 06E-104

Supplier Part Number (MPN): 06E-104

Specifications

Brand
Aeroquip® by Danfoss
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Hose, MNPT
Connection Type 1
Hose
Connection Type 2
MNPTF
Cut-Off Factor
0.95 in
Dimensions
1.98 in L x 0.78 in W x 0.78 in H
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
H009, H209, H243, H265, H275, H277, H285, H435 and H436 Series Hoses
Hex Size
0.563 in
Hose Dash Size
06
Material
Steel
Material Construction
Carbon Steel
Maximum Operating Pressure
9500 psi
nmfc
50
Series
E Series
Thread Size
1/4-18

Product Questions & Answers (3)

Question by: Dean A on Dec 29, 2025, 3:30 PM
If I'm using this in a setup where things might get bumped or hit, is this fitting still gonna hold up?
Answer by: Customer Support on Dec 31, 2025, 6:39 AM
Dura-Kote plating adds superior corrosion resistance, and the design is meant to provide long-term performance and maximum uptime, even with general-purpose low and medium-pressure hydraulics.
Question by: Glen Y on Nov 14, 2025, 2:53 PM
What kind of hose does this fitting crimp onto, and is the 1/4 NPT thread on the pipe end a standard size I'd find at most supply houses?
Answer by: Customer Support on Nov 16, 2025, 7:26 AM
For the hose end, this is built for -6 dash size hose, which is a 3/8 inch inside diameter hose commonly used in low and medium pressure hydraulic lines. The pipe end runs a 1/4-18 NPT thread, which is about as standard as it gets for NPT fittings. You'll find that size at virtually any hydraulic or industrial supply counter without any trouble.
Question by: Johnny R on Nov 29, 2025, 7:29 PM
got a -6 hose, is this the right crimp fitting for it?
Answer by: Customer Support on Dec 1, 2025, 6:32 AM
For a -6 hose dash size, this fitting matches that size and it’s an E Series crimp hose fitting assembly.
