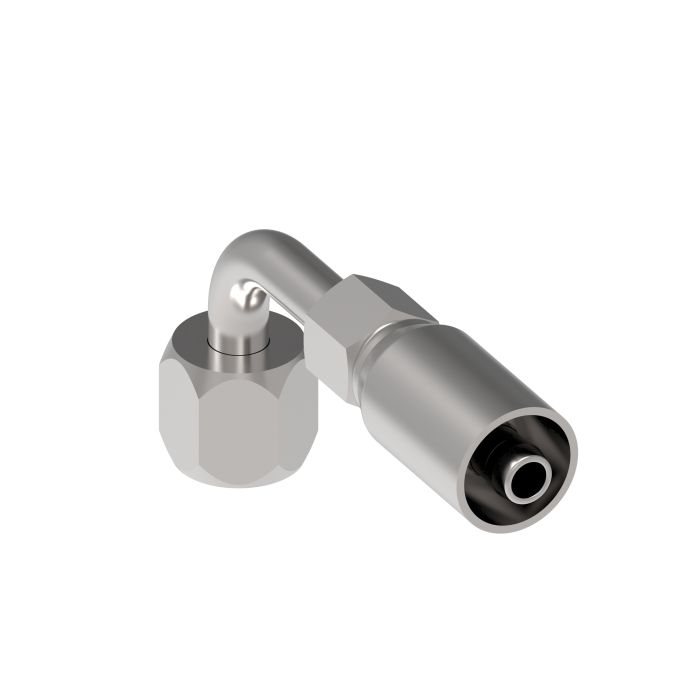

DANFOSS / EATON 6 F JIC 90 SWIV

Ask A Question

Description & Features

The Danfoss / Eaton 6 F JIC 90 Swiv is a high-quality hydraulic fitting, engineered for general purpose low and medium pressure hydraulics. Featuring an innovative design, it ensures optimal performance and maximized uptime for hydraulic applications.

With the superior corrosion resistance provided by Dura-Kote plating, this fitting is designed to extend the life of your hose assemblies. Made from durable carbon steel, it meets the rigorous demands of hydraulic systems, especially where shock hazards exist, such as when using H277 or H435 hoses.

Its assembly includes a female JIC 37 end type with a 0.5625 end size and a hose dash size of -6. The fittingrsquo;s 90-degree swivel design offers flexibility and ease of use in various hydraulic configurations.

Supplier Part Number: 06E-666

Specifications

Brand
Danfoss
a Dimensions
1.81 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.856 in
Drop Dimensions
0.85 in
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
06E Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (2)

Question by: Ray S on Apr 11, 2025, 7:54 PM
trying to replace a -6 hose end, is this the right one if I need a female JIC 37 and a 90?
Answer by: Customer Support on Apr 13, 2025, 4:38 PM
For a -6 hose assembly that needs a female JIC 37 swivel in a 90 degree shape, this fitting matches those basics. It’s a 6 F JIC 37 end with a 0.5625 end size and it’s built as a 90 degree swivel fitting assembly.
Question by: Rod W on Sep 15, 2025, 2:39 PM
got a -6 hose assembly running off a medium pressure circuit and need a 90 degree female JIC fitting that'll swivel. this the right part?
Answer by: Customer Support on Sep 17, 2025, 2:27 PM
For a -6 hose with a female JIC 37 end on a general purpose low or medium pressure hydraulic circuit, yes, this fitting is built exactly for that setup. The 90-degree swivel gives you some flexibility when routing hose in tight spots, and the carbon steel construction with Dura-Kote plating holds up well against corrosion over time. Just make sure your application doesn't involve significant shock loads. If it does, Eaton recommends pairing it with H277 or H435 hose rather than a standard general-purpose line.
