AEROQUIP REUSABLE FITTING

Description & Features

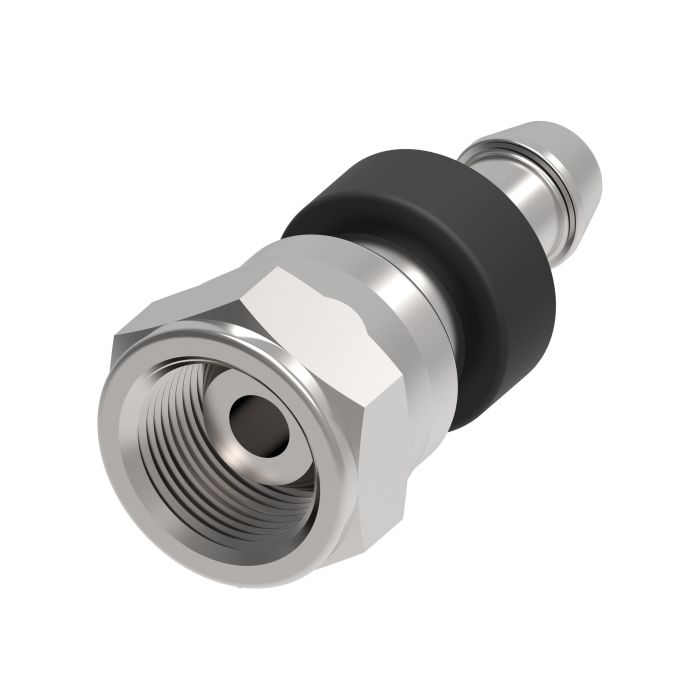

Designed for reusability and field-friendly assembly, this steel hose fitting from Aeroquip's 07.390 Series accepts a -6 dash size hose and features a 3/8" BSPT end connection. The socketless design allows fittings to be removed and reused, reducing replacement costs and cutting assembly time in hydraulic hose fabrication workflows.

The Aeroquip Reusable Fitting is suited to a wide range of hydraulic hose applications where a dependable female swivel connection and BSP thread compatibility are required. Constructed from steel, it delivers consistent performance across general industrial hydraulic service. At 0.12 lb, the fitting is compact and lightweight without compromising structural integrity.

SKU: 07.390-6-6

Supplier Part Number (MPN): 07.390-6-6

Alternate Part Numbers: C1GH17

Specifications

a Dimensions 1.535 in	Compatible Hose ID 0.38 in	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Female BSP Swivel, Hose	Connection Type 1 Female BSP Swivel	Connection Type 2 Hose	Construction Style Reusable	Cut-Off Factor 1.1 in	Dimensions 1.53 in L x 0.87 in W x 0.87 in H	End Size 1 3/8 in	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With 2556, 2565, 2575, FC332, FC647 and H201 Series Hoses	Hex Size 0.87 in	Hose Dash Size 06	Inside Diameter 0.3 in	Material Steel	Material Construction Carbon Steel	Series 07.390 Series	Thread Sealant Without Thread Sealant	Thread Size G3/8

Product Questions & Answers (1)

Question by: Dale S on Mar 23, 2026, 8:57 PM

Will this fitting hold up ok in a hydraulic system running around 2000 psi?

Answer by: Customer Support on Mar 25, 2026, 8:11 AM

Constructed from steel, this Aeroquip fitting should deliver consistent performance across general industrial hydraulic service.
