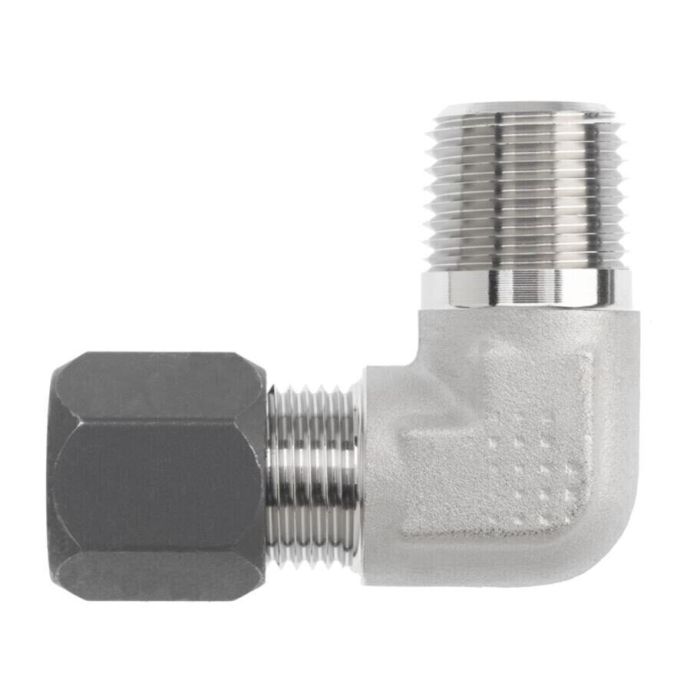

08BT-08MP 90 DEG ELBOW FORGED.

Description & Features

Forged construction and a 90-degree angle make the 08BT-08MP 90 Deg Elbow Forged a practical choice for directional changes in hydraulic lines where space or routing constraints require a right-angle transition. The fitting connects a 1/2 in. OD tube end to a 1/2-14 NPTF male pipe thread, with a 3/4-16 thread on the tube side and an A2 drill diameter of 0.531 in.

Part of Brennan Industries' C2501-FG series, this elbow measures 1.350 in. in the M length and 1.470 in. in the N length, with a K depth of 0.305 in. and 0.875 in. across the wrench flats. The forged construction provides consistent material integrity suited to demanding hydraulic service environments.

SKU: C2501-08-08-FG

Supplier Part Number (MPN): C2501-08-08-FG

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number C2501-08-08-FG	Product Weight 0.34 lbs

Product Questions & Answers (1)

Question by: Norm C on Nov 4, 2025, 8:11 PM

So this thing's got a right angle, right? Wondering how tight of a turn I can make with it, like what kinda space do I need?

Answer by: Customer Support on Nov 6, 2025, 6:47 AM

It's designed for directional changes where space is tight; the elbow fitting has an M length of 1.350 inches and an N length of 1.470 inches, which dictate how much space you'll need for the turn.
