Danfoss / Eaton Hose End E Series

Description & Features

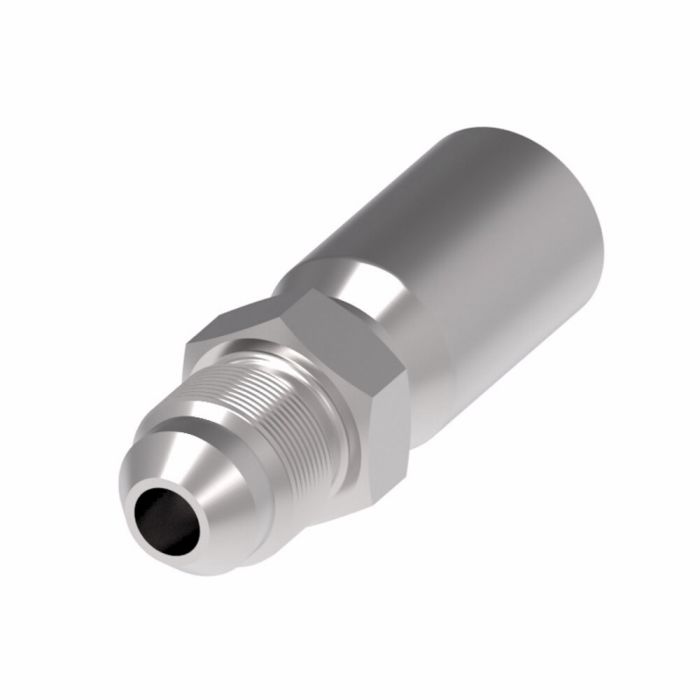

Danfoss / Eaton E Series Crimp Hose Fittings JIC 37 Male Rigid

Specifications

Brand
Danfoss
a Dimensions
2.18 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg JIC
Construction Style
Crimp
Cut-Off Factor
1.14 in
Dimensions
2.18 in L
End Connection Torque
35 to 46 lb-ft
End Gender 1
Male
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
H009, H209, H243, H265, H275, H277, H285, H435, H436 and SC-TW Series Hoses
Hex Size
0.81 in
Hose Dash Size
08
Inside Diameter
0.39 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
08E Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (3)

Question by: Scott W on Jul 7, 2025, 9:59 AM
What size is this fitting, like the hose end size?
Answer by: Customer Support on Jul 8, 2025, 7:36 PM
It's made for a hose with a -8 dash size.
Question by: Diane F on Jan 24, 2026, 7:04 AM
fitting's made from carbon steel -- will that hold up alright against rust over time or is that something I'd need to keep an eye on?
Answer by: Customer Support on Jan 26, 2026, 6:53 AM
Carbon steel on its own can be prone to corrosion, but Eaton put a Dura-Kote plating on these fittings specifically to handle that. It's a step above standard zinc plating and gives you noticeably better corrosion resistance without needing extra protection on your end. For most shop and field environments, the plating does the heavy lifting.
Question by: Phil W on Aug 12, 2025, 7:23 AM
got a -8 hose here, is this the right end to crimp on for a JIC 37 male?
Answer by: Customer Support on Aug 13, 2025, 12:57 PM
For a -8 hose assembly, this is an E Series crimp hose fitting with a JIC 37 male rigid end. The end size is 0.75 and the end gender is male, so it matches the JIC 37 male rigid style you mentioned.
