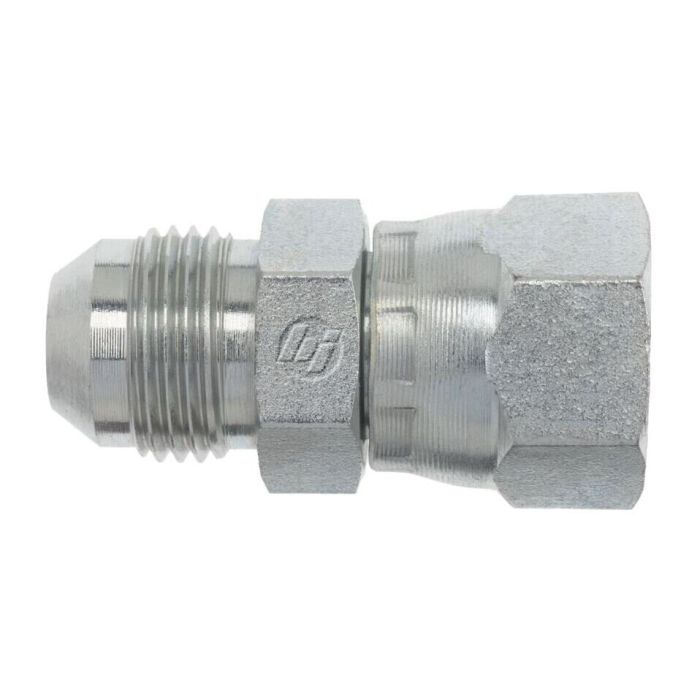

main product photo

08MJ-06FJS STRAIGHT

Ask A Question

Description & Features

Constructed from straight steel, the 08MJ-06FJS Straight is a hydraulic fitting designed to connect a 3/4-16 Male JIC SAE 37-degree flare to a 9/16-18 Female JIC Swivel 37-degree flare, with both threads conforming to SAE J514. The swivel end allows for rotational adjustment during installation, reducing the need to torque adjacent components when making up connections in tight or fixed-line assemblies.

Part of the Brennan Industries Series 6504, this straight adapter is suited for hydraulic line assemblies where JIC flare fittings are the specified connection type. The steel construction supports use in demanding industrial fluid power applications. California residents should note that this product is subject to Prop 65 warning requirements.

SKU: 6504-08-06

Supplier Part Number (MPN): 6504-08-06

Specifications

Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Male JIC
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Female SAE 37 deg JIC Flare Swivel
Dimension Standards
SAE J514
Dimensions
1.735 in L
Finish
Zinc Trivalent
Fitting Type
Adapter
Hex Size
0.812 x 0.688 in
Material
Steel
Material Construction
AISI 12L14/1045 Steel
Maximum Operating Pressure
6000 psi
Series
6504 Series
Thread B1 Drill Dimensions
0.391 in
Thread B2 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Harold F on Apr 16, 2025, 8:40 PM
What size are the threads on this fitting? Just want to make sure it'll work for my setup.
Answer by: Customer Support on Apr 18, 2025, 6:42 AM
It features a 3/4-16 male JIC to a 9/16-18 female JIC swivel, both built to the SAE J514 spec. Double check those sizes against your existing connections.
