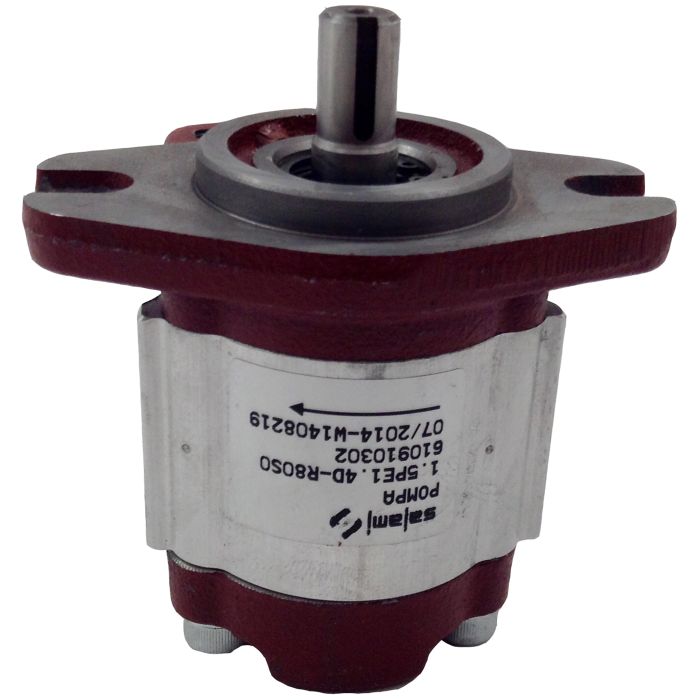

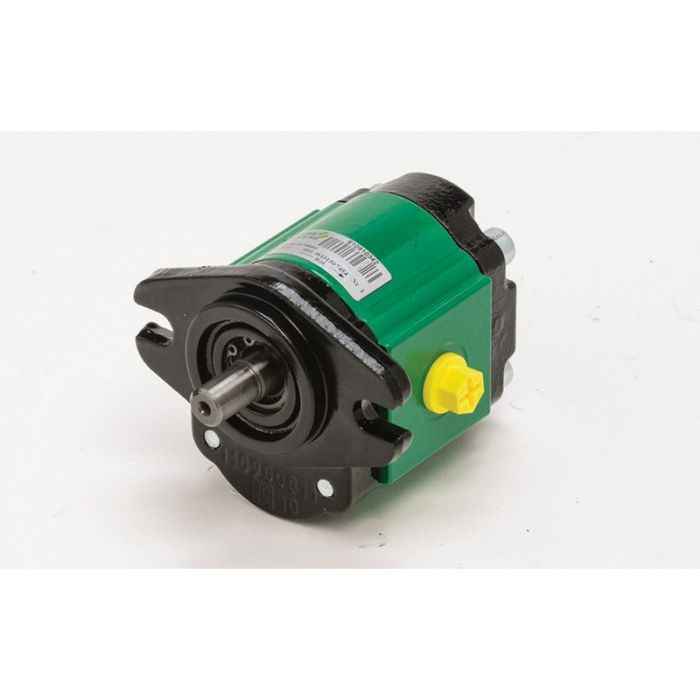

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Description & Features

This 1.5PE Series Aluminium Gear Pump is designed for durability and efficiency in demanding hydraulic environments. Its advanced bushing and seal configuration ensures optimal performance, even under high temperature and low viscosity conditions.

The SALAMI HYDRAULICS NA INC gear pump features a 2-Bolt SAE AA mounting flange, a 1/2 St. Keyed x 1.06 long SAE AA shaft, an SAE -8 side inlet, and an SAE -6 side outlet. It has a displacement of 0.09 cu in/rev, a rated flow of 0.6 GPM, and a pressure rating of 3625 PSI. This single hydraulic gear pump is configured for CW rotation, which can be reversed by reconfiguring the drive shaft, driven shaft and front flange.

This gear pump is suitable for continuous speeds up to 4250 RPM, with intermittent speeds up to 5000 RPM. Proper filtration is essential: use ISO 4406 20/19/16 for pressure below 2900 PSI, and ISO 4406 19/18/15 for pressure above 2900 PSI. The recommended temperature range is 5°F to 185°F with Buna-N seals, or -4°F to 230°F with FPM (Viton) seals.

SKU: 610910302

Supplier Part Number (MPN): 610910302

Alternate Part Numbers: 1.5PE1.4D-R80S0, 1.5PE1.4D-R80S0 PUMP, C1MQ96

Specifications

Displacement 0.09	Displacement 0.09	Brand Salami Hydraulics Na Inc	Brand Salami Hydraulics	Pack Size 1.00	UOM EA	Mount 2-Bolt SAE AA	Mount 2-Bolt SAE AA	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Ports SAE -8 Side Inlet, SAE -6 Side Outlet	Pressure Rating 3625	Rated Flow 0.60	Rated Flow 0.6	Rotation CW	Shaft 1/2 St. Keyed x 1.06 long, SAE AA	Shaft 1/2 St. Keyed x 1.06 long, SAE AA	Speed Rating 4250 RPM	Speed Rating 4250 RPM	Supplier Part Number 610910302	Alternate Part Numbers Alternate Part Number 1.5PE1.4D-R80S0, Alternate Part Number 1.5PE1.4D-R80S0 PUMP, Alternate Part Number C1MQ96	Product Weight 4.20 lbs

Similar Products

Model Number	Displacement	Rated Flow	Mount	Shaft	Ports	Rotation	Speed Rating	Pressure Rating
610910302 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910312 1.5PE Series Gear Pump	0.13	0.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910322 1.5PE Series Gear Pump	0.17	1.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910342 1.5PE Series Gear Pump	0.25	1.8	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3400 RPM	3625
610910362 1.5PE Series Gear Pump	0.38	2.9	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3060 RPM	3335
610910372 1.5PE Series Gear Pump	0.46	3.4	Rectangular	1:8 Tapered	European Flange	CW	2805 RPM	2900
610910382 1.5PE Series Gear Pump	0.57	4.2	2-Bolt SAE AA	1/2 St. Keyed x 1.06 long SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2610
610910402 1.5PE Series Gear Pump	0.09	0.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625
610910432 1.5PE Series Gear Pump	0.21	1.6	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	3825 RPM	3625
610910472 1.5PE Series Gear Pump	0.46	3.4	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2805 RPM	2900
610910492 1.5PE Series Gear Pump	0.67	4.7	2-Bolt SAE AA	9T 20/40 DP Spline, SAE AA	SAE -10 Side Inlet, SAE -8 Side Outlet	CW	2550 RPM	2465
610910512 1.5PE Series Gear Pump	0.13	0.9	4-Bolt SAE AA	1/2 St. Keyed x 1.5 long	SAE -8 Side Inlet, SAE -6 Side Outlet	CW	4250 RPM	3625

Product Questions & Answers (2)

Question by: Peggy D on Sep 4, 2025, 9:45 PM

Hey, will this gear pump bolt right up to a standard SAE AA mount? Just wanna make sure before I order.

Answer by: Customer Support on Sep 6, 2025, 6:07 AM

Yes, this 1.5PE series gear pump uses a 2-Bolt SAE AA mounting flange.

Question by: Jean T on Aug 2, 2025, 1:45 PM

pump runs clockwise right? wanting to make sure before i go swappin anything out on my skid unit

Answer by: Customer Support on Aug 4, 2025, 7:49 AM

Clockwise rotation is the standard configuration on this pump. Worth knowing though, rotation can be changed by swapping the drive shaft and driven shaft positions and rotating the front flange, so it's not a permanent limitation if your setup calls for something different down the road.
