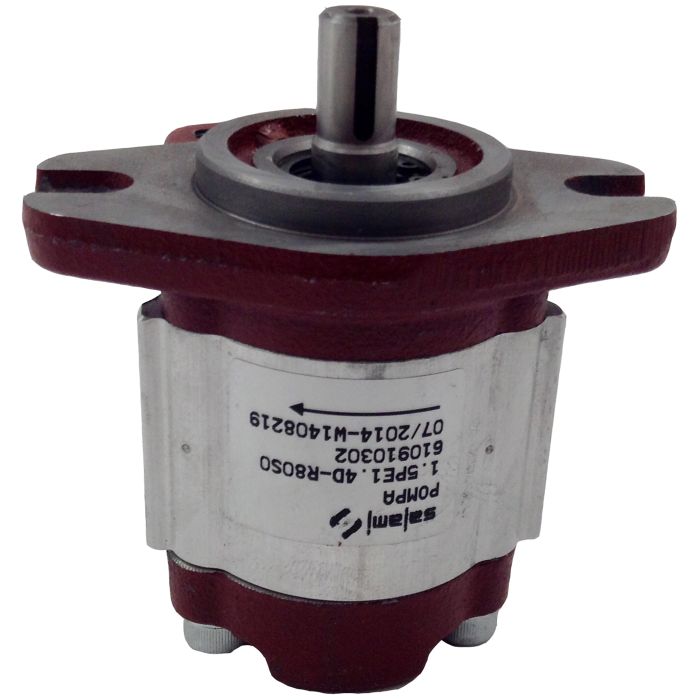

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Description & Features

The Salami 1.5PE Series Aluminium Gear Pump features a 0.13 cu in/rev displacement and is constructed for high efficiency and long life in demanding environments. This gear pump's design incorporates an advanced bushing and seal configuration to optimize performance, even in high-temperature and low-viscosity conditions.

This 1.5PE Series Aluminium Gear Pump has a 2-Bolt SAE AA mounting flange and a 1/2 St. Keyed x 1.06 long SAE AA shaft. It includes SAE -8 side inlet and SAE -6 side outlet ports. It is rated to 4250 RPM with a 3625 PSI pressure rating.

SKU: 610910312

Supplier Part Number (MPN): 610910312

Alternate Part Numbers: 1.5PE2.1D-R80S0, C1MQ97

Specifications

Brand
Salami
Dimensions
4.4 in L x 2.76 in W x 3.25 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4205 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE AA
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
1.5PE Series
Shaft
1/2 in Straight Keyed x 1.06 in Long SAE AA

Similar Products

Model Number Displacement Flow Rate Inlet Size Outlet Size Price Action
1.5PE Series Aluminium Gear Pump, 0.17 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910322 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910402 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.21 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910432 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.67 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910492 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.13 cu in/rev, 4-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.5 long Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910512 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.25 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910342 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.57 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910382 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, Rectangular Mounting Flange, 1:8 Tapered Shaft, European Flange, CW Rotation

610910372 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.09 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long, SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910302 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.46 cu in/rev, 2-Bolt SAE AA Mounting Flange, 9T 20/40 DP Spline, SAE AA Shaft, SAE -10 Side Inlet, SAE -8 Side Outlet, CW Rotation

610910472 1.5PE Series Gear Pump

1.5PE Series Aluminium Gear Pump, 0.38 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

610910362 1.5PE Series Gear Pump

610910332

610910332

610910352

610910352

610910392

610910392

610910412

610910412

610910422

610910422

610910442

610910442

610910452

610910452

610910462

610910462

610910482

610910482

610910502

610910502

610910522

610910522

610910532

610910532

610910542

610910542

610910552

610910552

610910562

610910562

610910572

610910572

610910582

610910582

610910592

610910592

Product Questions & Answers (1)

Question by: Wes T on Mar 2, 2026, 7:48 AM
Will this pump work with Viton seals if I need it to handle higher temps?
Answer by: Customer Support on Mar 3, 2026, 9:32 AM
Yes, this gear pump can be configured with FPM (Viton) seals which allows it to operate in temperatures from -4°F to 230°F. The standard Buna-N seals are rated for 5°F to 185°F.
