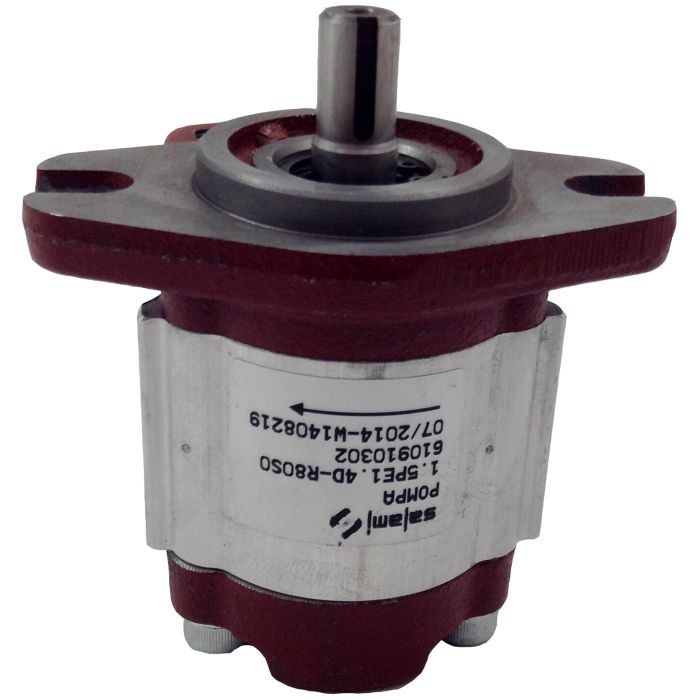

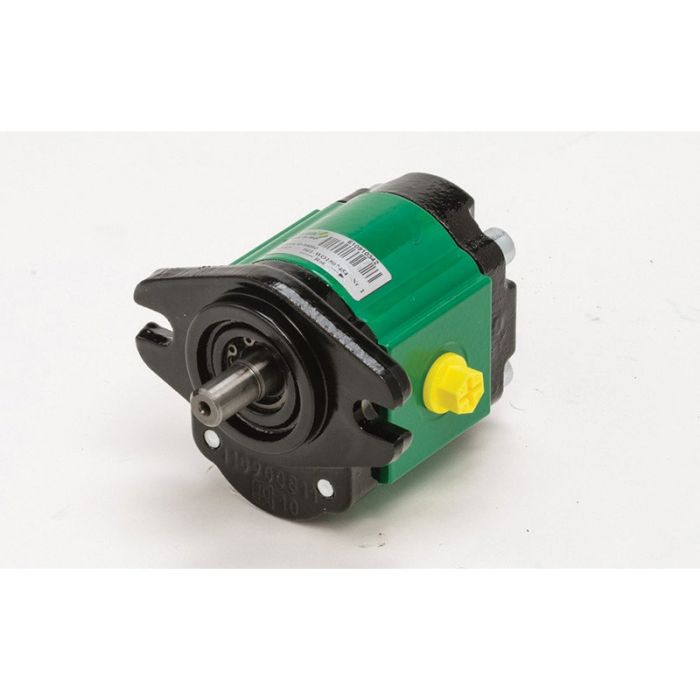

main product photo

1.5PE Series Aluminium Gear Pump, 0.25 cu in/rev, 2-Bolt SAE AA Mounting Flange, 1/2 St. Keyed x 1.06 long SAE AA Shaft, SAE -8 Side Inlet, SAE -6 Side Outlet, CW Rotation

Ask A Question

Description & Features

The 1.5PE Series Aluminium Gear Pump is designed with high efficiency and durability in mind accommodating severe operating conditions. Featuring a 2-Bolt SAE AA Mounting Flange and a 1/2 St. Keyed x 1.06 long SAE AA Shaft this pump ensures robust performance. It offers a displacement of 0.25 cu in/rev and supports CW rotation.

The pump includes an SAE -8 Side Inlet and an SAE -6 Side Outlet making it suitable for various industrial applications. Rated for a pressure of 3625 PSI and a speed rating of 3400 RPM it can handle demanding tasks with ease. The advanced bushing and seal design optimize functionality in high-temperature and low-viscosity environments.

With a continuous speed rating that varies with displacement and intermittent speeds up to 5000 RPM this gear pump is versatile for different operational needs. The standard temperature rating ranges from 5deg;F to 185deg;F with Buna-N seals and -4deg;F to 230deg;F with FPM seals (Viton).

Recommended filtration levels are ISO 4406: < 2900 PSI: 20/19/16; > 2900 PSI: 19/18/15. For optimal performance use fluids with an operating viscosity range between 85 SUS to 297 SUS.

MPN: C1MV46

Supplier Part Number: 610910342

Specifications

Dimensions
4.62 in L x 2.76 in W x 3.25 in H
Grp Pressure Limit
Inlet Pressure - 7.38 inHg to 21.7 psi, Pump Outlet - Continuous Working Pressure Varies with Displacement, Peak Pressure Pressures up to 4205 psi
grp Recommended Filtration
< 2900 psi - 20/19/16 um, > 2900 psi - 19/18/15 um
grp Recommended Fluids
Minimum Operating Fluid Viscosity - 66 SSU (with 80% Reduction of Working Pressure and at Minimum Speed) to 3635 SSU (Maximum Starting Viscosity), Normal Operating Range - 85 SSU to 297 SSU
Housing Material
Aluminum
Inlet Type
SAE Threaded
Mount
2-Bolt SAE AA
Mounting Type
Flange
Outlet Type
SAE Threaded
Rotation
Clockwise
Seal Material
Nitrile
Series
1.5PE Series
Shaft
1/2 in Straight Keyed x 1.06 in Long SAE AA

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Steve H on Jul 16, 2025, 1:51 PM
runs clockwise rotation on this one, right? got a setup that won't work with a CCW pump and don't want to order the wrong thing again
Answer by: Customer Support on Jul 17, 2025, 2:15 PM
Correct, this pump runs clockwise rotation as configured. Worth knowing though, rotation can be changed by reversing the positions of the drive shaft and driven shaft and rotating the front flange, so it's not permanently locked to CW if your needs ever change down the road.
Question by: Gene H on Feb 5, 2026, 8:24 AM
What kind of operating temps can this pump handle?
Answer by: Customer Support on Feb 6, 2026, 4:48 PM
The standard Buna-N seals allow for operating temperatures from 5°F to 185°F. If you need a wider range, FPM seals (Viton) will handle -4°F to 230°F.
